Components [10/2021 - 11/2023]

Fig 1: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BATTERY SERVICE HOLE COVER	-	-

Fig 2: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT INNER SEAT TRACK BRACKET COVER	*2	FRONT OUTER SEAT TRACK BRACKET COVER
*3	FRONT SEAT ASSEMBLY	*4	FRONT SEAT HEADREST ASSEMBLY
*5	INNER SEAT TRACK BRACKET COVER	*6	SEAT TRACK COVER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 3: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Front Passenger Side	-	-
*1	OCCUPANT DETECTION ECU	-	-

Fig 4: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Seat Position Memory System	-	-
*1	POSITION CONTROL ECU ASSEMBLY	-	-

Fig 5: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Seat Heater System	-	-
*1	SEAT HEATER CONTROL SUB-ASSEMBLY	-	-

Fig 6: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT INNER BELT ASSEMBLY	*2	FRONT SEAT BELT ANCHOR PLATE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 7: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT CUSHION SHIELD	*2	FRONT SEAT FRONT CUSHION SHIELD
*3	FRONT SEAT INNER CUSHION SHIELD	-	-

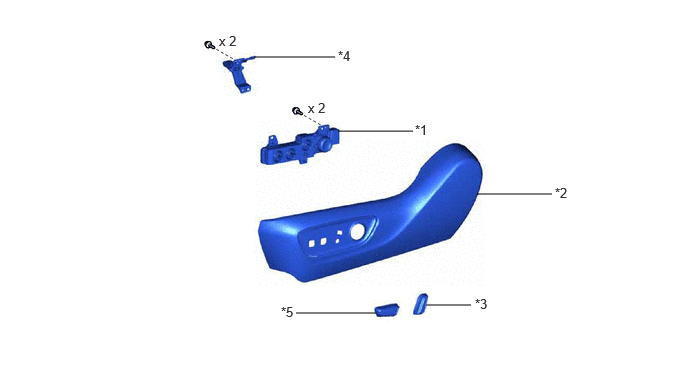

Fig 8: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT POWER SEAT SWITCH	*2	FRONT SEAT CUSHION SHIELD
*3	RECLINING POWER SEAT SWITCH KNOB	*4	SEAT ADJUSTER SHIELD CLAMP BRACKET
*5	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-	-

Fig 9: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEATBACK ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 10: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT HEADREST SUPPORT ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Fig 11: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Seat Heater System	-	-
*1	FRONT SEATBACK HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK COVER
*3	SEPARATE TYPE FRONT SEATBACK PAD	*4	TAG PIN
•	Non-reusable part	-	-

Fig 12: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SEAT AIRBAG ASSEMBLY	*2	SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 13: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (13 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Lumbar Support	*B	w/ Lumbar Support
*C	w/o Climate Control Seat System	*D	w/ Climate Control Seat System
*E	w/ Seatback Felt	-	-
*1	FRONT NO. 2 SEATBACK EDGE PROTECTOR	*2	FRONT NO. 2 SEATBACK HOOK
*3	FRONT SEAT NO. 2 WIRE	*4	FRONT SEATBACK SPRING SUB-ASSEMBLY
*5	LUMBAR SUPPORT ADJUSTER ASSEMBLY	*6	SEATBACK CLIMATE CONTROL BLOWER
*7	FRONT SEATBACK FRAME SUB-ASSEMBLY	*8	SEATBACK FELT

Fig 14: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (14 Of 19)

Callout	Description	Callout	Description
*1	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	*2	SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY

Fig 15: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (15 Of 19)

Callout	Description	Callout	Description
*A	for Front Passenger Side	-	-
*1	FRONT SEAT CUSHION AIRBAG ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 16: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (16 Of 19)

Callout	Description	Callout	Description
*A	w/ Seat Heater System	-	-
*1	FRONT SEAT CUSHION HEATER ASSEMBLY	*2	SEPARATE TYPE FRONT SEAT CUSHION COVER
*3	SEPARATE TYPE FRONT SEAT CUSHION PAD	*4	TAG PIN
•	Non-reusable part	-	-

Fig 17: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (17 Of 19)

Callout	Description	Callout	Description
*A	w/ Climate Control Seat System	-	-
*1	SEAT CUSHION CLIMATE CONTROL BLOWER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

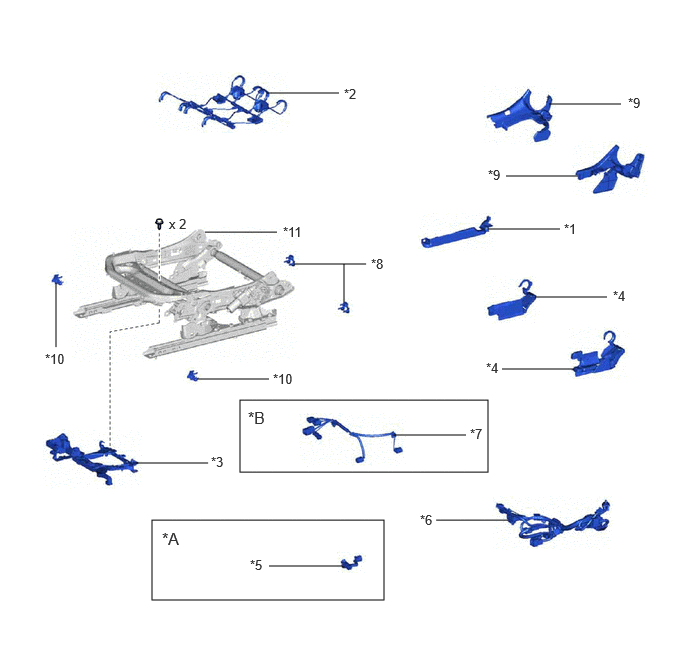

Fig 18: Front Seat Assembly (For Power Seat) Replacement Components [10/2021 - 11/2023] (18 Of 19)

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT LH SEAT LOWER CUSHION SHIELD	*2	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY
*3	FRONT SEAT CUSHION WIRE HARNESS HOLDER	*4	FRONT SEAT LOWER CUSHION SHIELD LH
*5	FRONT SEAT NO. 2 WIRE LH	*6	FRONT SEAT WIRE
*7	FRONT SEAT WIRE RH	*8	REAR UPPER SEAT TRACK COVER
*9	RECLINING ADJUSTER INSIDE COVER LH	*10	SEAT TRACK UPPER RAIL COVER
*11	FRONT SEAT ADJUSTER ASSEMBLY	-	-

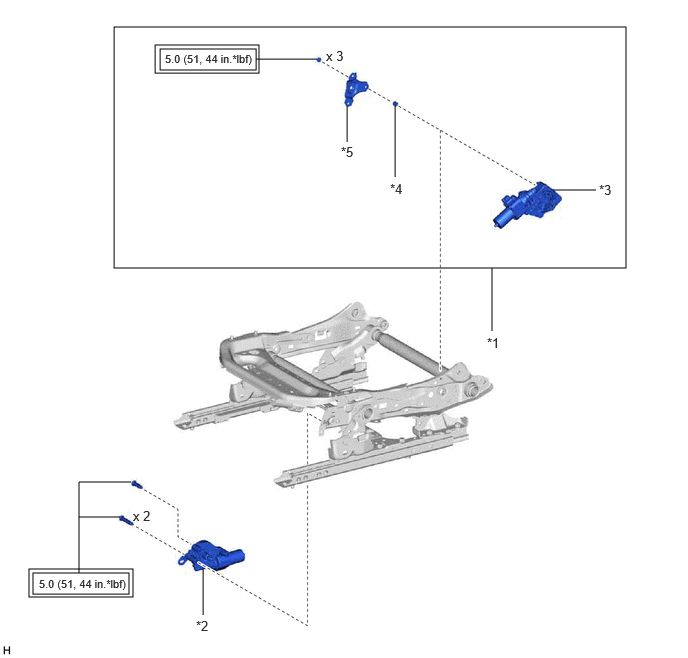

Fig 19: Front Seat Assembly (For Power Seat) Replacement Components With Torque Specifications [10/2021 - 11/2023] (19 Of 19)

Callout	Description	Callout	Description
*1	POWER SEAT LIFTER MOTOR ASSEMBLY	*2	POWER SEAT TILT MOTOR ASSEMBLY
*3	FRONT SEAT VERTICAL HOUSING SUB-ASSEMBLY	*4	VERTICAL ADJUSTER SPACER
*5	FRONT SEAT ADJUSTER PLATE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
