System Diagram [12/2019 - 10/2021]

  1. Driver Seat

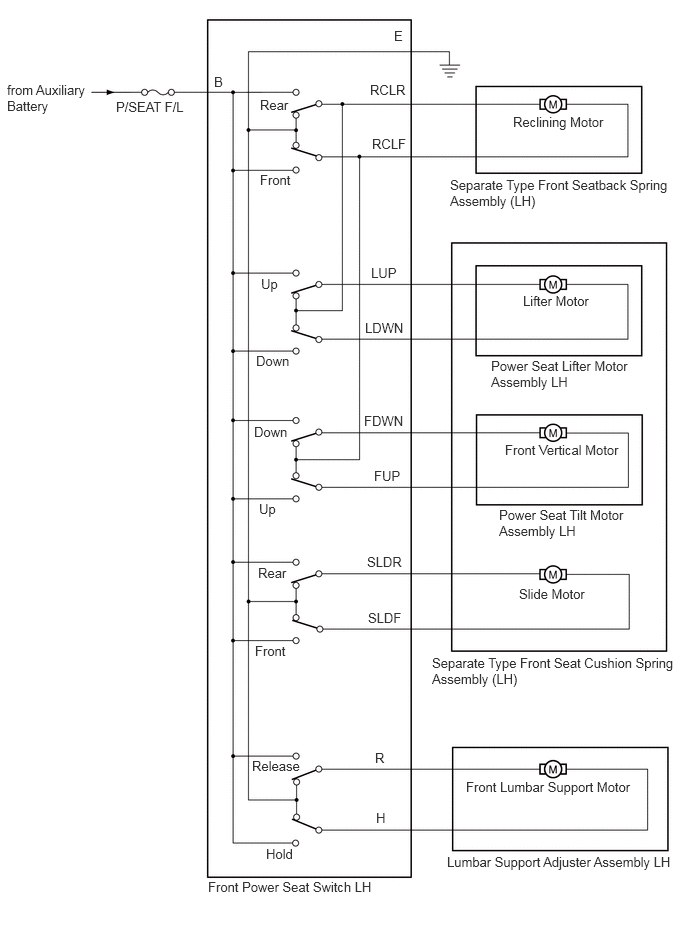

    Fig 1: Driver Seat System Diagram [12/2019 - 10/2021]
    GTY935183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Front Passenger Seat

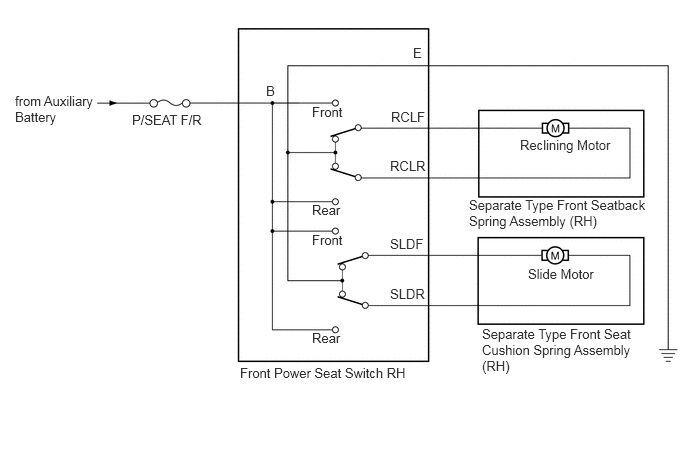

    Fig 2: Front Passenger Seat System Diagram [12/2019 - 10/2021]
    GTY908958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
