System Diagram [10/2021 - 11/2023]

  1. Driver Seat
    Fig 1: Driver Seat System Diagram [10/2021 - 11/2023]
    GTY935183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Front Passenger Seat

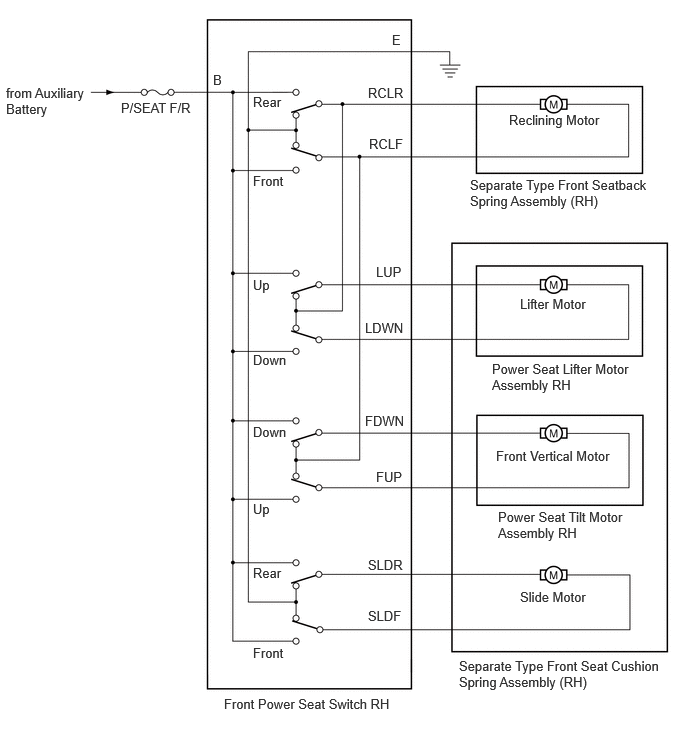

    Fig 2: Front Passenger Seat System Diagram [10/2021 - 11/2023]
    GTY1110050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
