On-Vehicle Inspection [12/2019 - ]: Procedure
- INSPECT HOOD SUB-ASSEMBLY

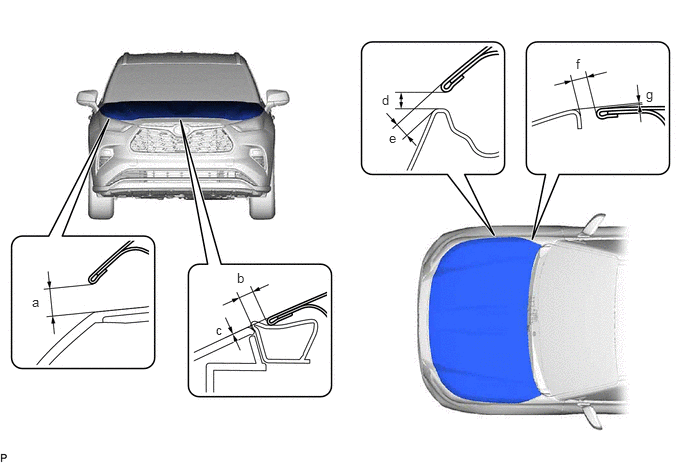

- Check that the clearance measurements of areas a through g are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 7.35 to 11.35 mm (0.289 to 0.447 in.) b 2.85 to 6.85 mm (0.112 to 0.270 in.) c -1.85 to 2.15 mm (-0.0728 to 0.0846 in.) d 3.1 to 6.1 mm (0.122 to 0.240 in.) e 2.1 to 5.1 mm (0.0827 to 0.201 in.) f 3.2 to 6.2 mm (0.126 to 0.244 in.) g 0.5 mm (0.0197 in.) - -
- Check that the clearance measurements of areas a through g are within each standard range.
