Components [12/2019 - ]

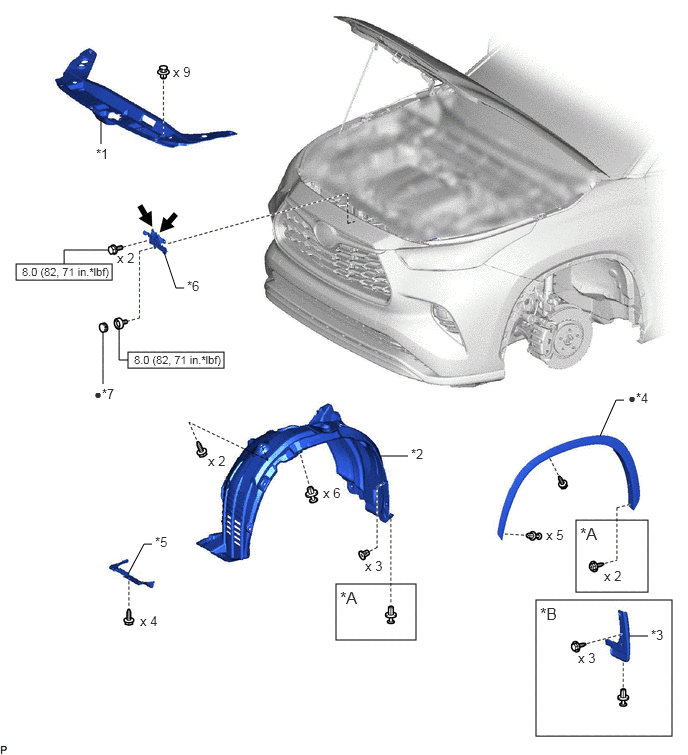

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Mudguard | *B | w/ Mudguard |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT FENDER LINER LH |
| *3 | FRONT FENDER MUDGUARD LH | *4 | FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH |
| *5 | FRONT WHEEL OPENING EXTENSION PAD LH | *6 | HOOD LOCK ASSEMBLY |
| *7 | HOOD LOCK NUT CAP | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | - | - |

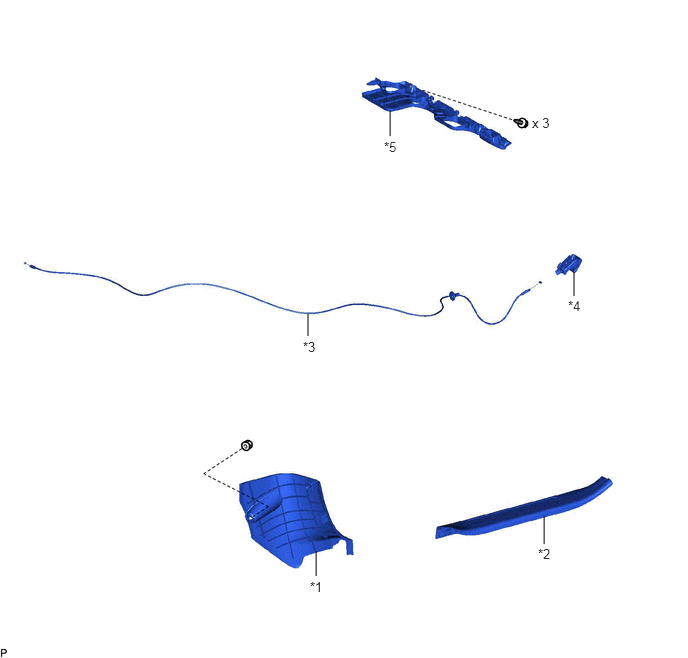

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | HOOD LOCK CONTROL CABLE ASSEMBLY | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
