Components [12/2019 - ]

Fig 1: Front Door Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BATTERY SERVICE HOLE COVER	-	-

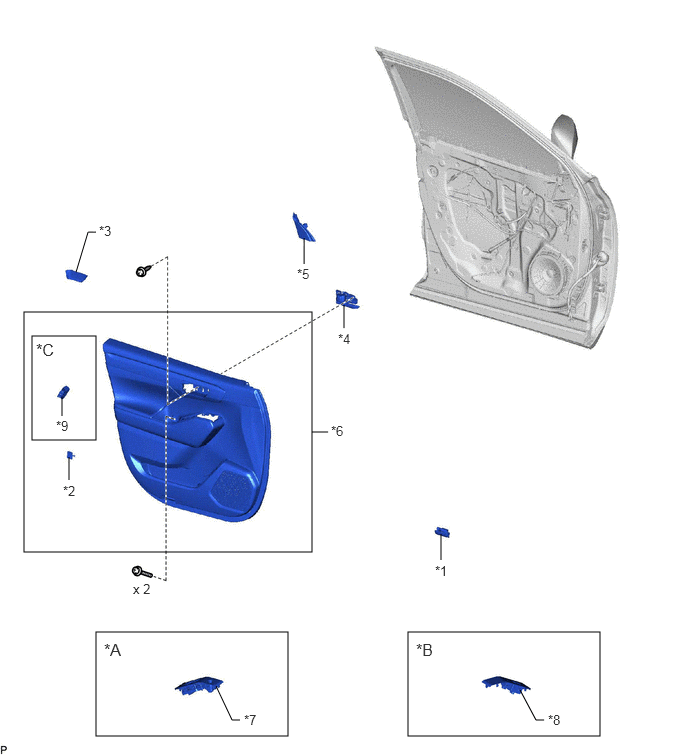

Fig 2: Front Door Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*C	w/ Seat Memory Switch	-	-
*1	COURTESY LIGHT ASSEMBLY	*2	DOOR ARMREST COVER SUB-ASSEMBLY
*3	FRONT DOOR INSIDE HANDLE BEZEL	*4	FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
*5	FRONT DOOR LOWER FRAME BRACKET GARNISH	*6	FRONT DOOR TRIM BOARD SUB-ASSEMBLY
*7	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL	*8	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL
*9	SEAT MEMORY SWITCH	-	-

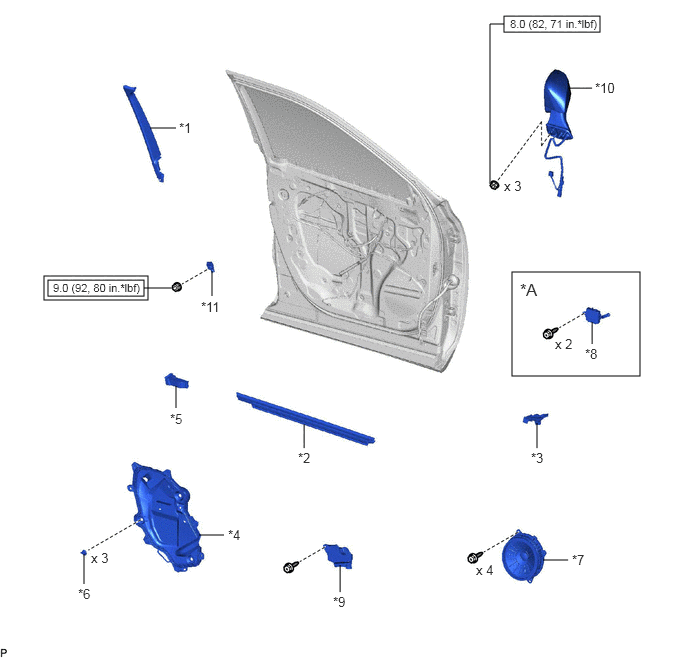

Fig 3: Front Door Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Memory	-	-
*1	DOOR FRAME GARNISH	*2	FRONT DOOR INNER GLASS WEATHERSTRIP
*3	FRONT DOOR PANEL PROTECTOR	*4	FRONT DOOR SERVICE HOLE COVER
*5	FRONT DOOR VENT SEAL	*6	FRONT DOOR WEATHERSTRIP CLIP
*7	FRONT NO. 1 SPEAKER ASSEMBLY	*8	OUTER MIRROR CONTROL ECU ASSEMBLY
*9	OUTER MIRROR INSTALL HOLE COVER	*10	OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER
*11	SIDE AIRBAG SENSOR ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

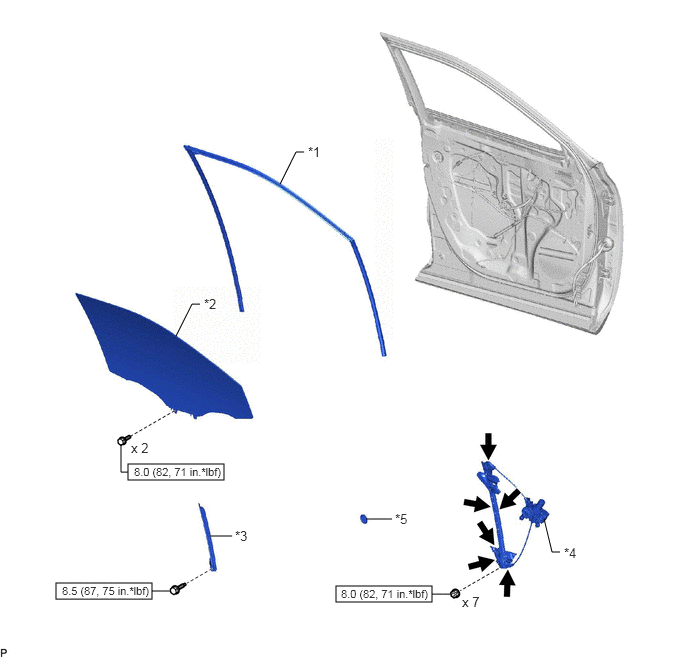

Fig 4: Front Door Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DOOR GLASS RUN	*2	FRONT DOOR GLASS SUB-ASSEMBLY
*3	FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY	*4	FRONT DOOR WINDOW REGULATOR ASSEMBLY
*5	HOLE PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

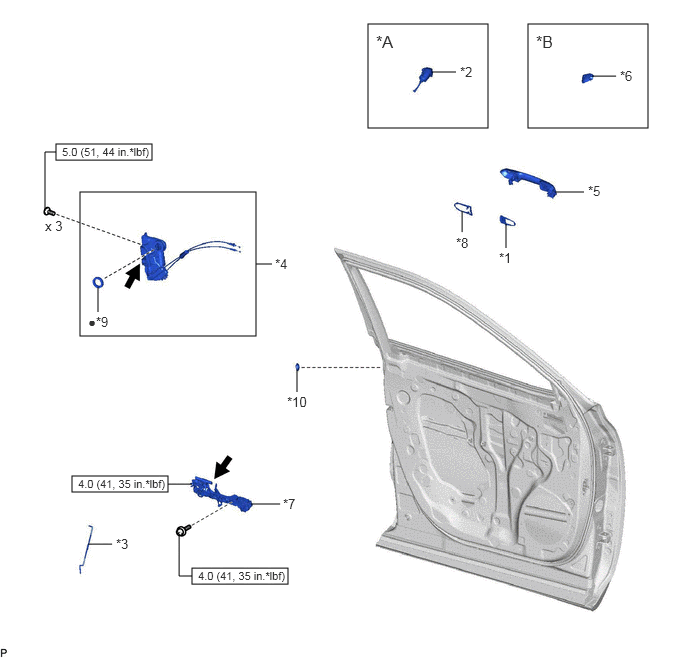

Fig 5: Front Door Replacement Components With Torque Specifications (5 Of 7)

Callout	Description	Callout	Description
*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT DOOR FRONT OUTSIDE HANDLE PAD	*2	FRONT DOOR LOCK CYLINDER ASSEMBLY
*3	FRONT DOOR LOCK OPEN ROD	*4	FRONT DOOR LOCK WITH MOTOR ASSEMBLY
*5	FRONT DOOR OUTSIDE HANDLE ASSEMBLY	*6	FRONT DOOR OUTSIDE HANDLE COVER
*7	FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY	*8	FRONT DOOR REAR OUTSIDE HANDLE PAD
*9	DOOR LOCK WIRE HARNESS SEAL	*10	HOLE PLUG
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

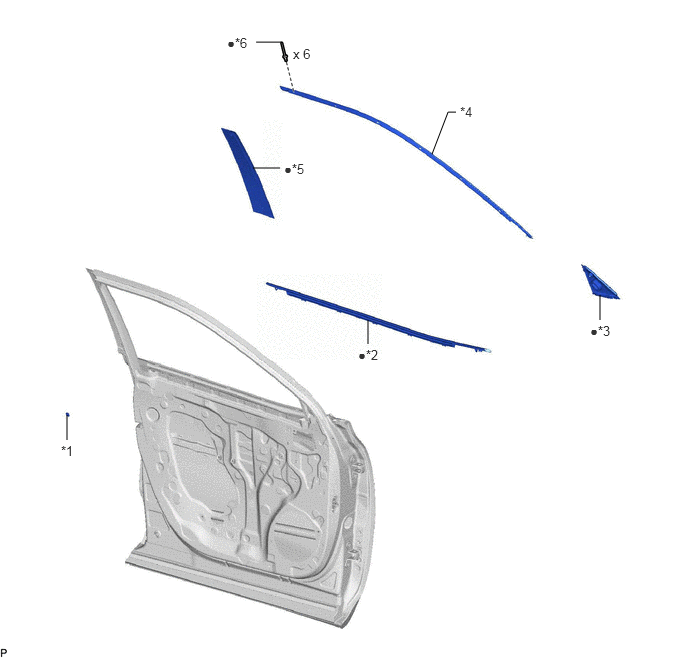

Fig 6: Front Door Replacement Components (6 Of 7)

Callout	Description	Callout	Description
*1	DOOR WINDOW FRAME MOULDING CLIP	*2	FRONT DOOR BELT MOULDING ASSEMBLY
*3	FRONT DOOR FRONT LOWER FRAME UPPER COVER	*4	FRONT DOOR UPPER WINDOW FRAME MOULDING
*5	FRONT DOOR WINDOW FRAME MOULDING	*6	RIVET
•	Non-reusable part	-	-

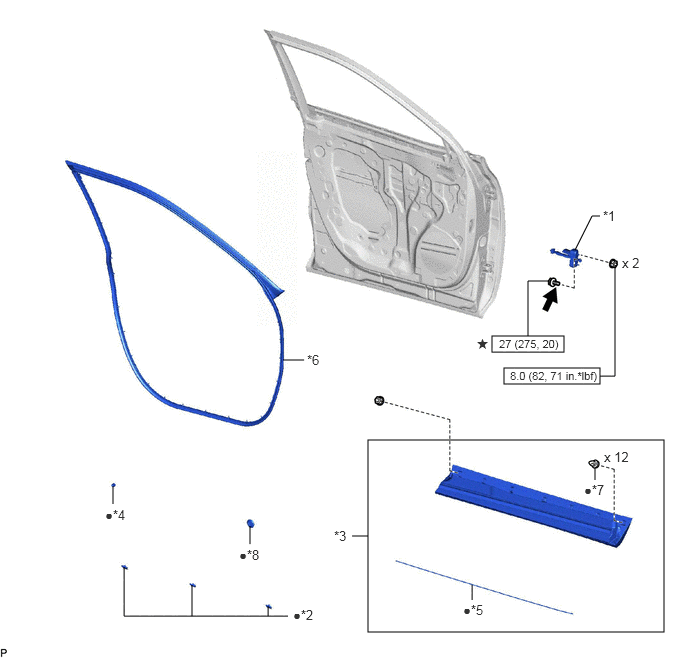

Fig 7: Front Door Replacement Components With Torque Specifications (7 Of 7)

Callout	Description	Callout	Description
*1	FRONT DOOR CHECK ASSEMBLY	*2	FRONT DOOR DUST PROOF SEAL
*3	FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY	*4	FRONT DOOR PANEL CUSHION
*5	FRONT DOOR UPPER OUTSIDE MOULDING PAD	*6	FRONT DOOR WEATHERSTRIP
*7	CLIP	*8	PLUG PLATE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part
