Adjustment [12/2019 - ]: Procedure

INSPECT FRONT DOOR

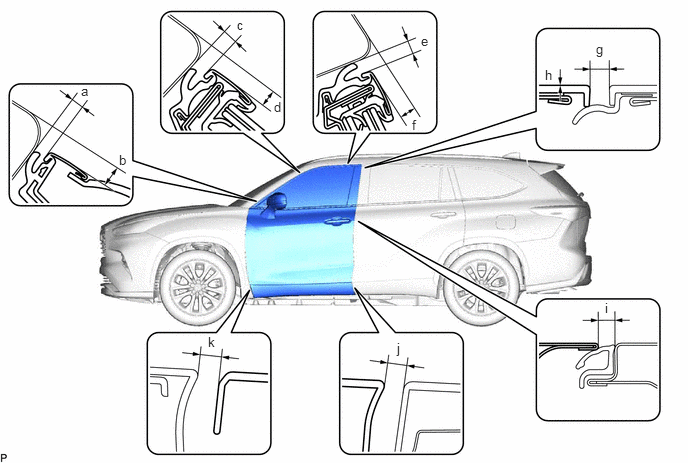

Check that the clearance measurements of areas a through k are within each standard range.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE

Area	Measurement	Area	Measurement
a	3.05 to 6.05 mm (0.120 to 0.238 in.)	b	6.45 to 9.45 mm (0.254 to 0.372 in.)
c	3.05 to 6.05 mm (0.120 to 0.238 in.)	d	4.05 to 7.05 mm (0.159 to 0.278 in.)
e	3.05 to 6.05 mm (0.120 to 0.238 in.)	f	4.25 to 7.25 mm (0.167 to 0.285 in.)
g	2.6 to 6.6 mm (0.102 to 0.260 in.)	h	-1.9 to 2.1 mm (-0.0748 to 0.0827 in.)
i	2.7 to 5.7 mm (0.106 to 0.224 in.)	j	5.0 to 9.0 mm (0.197 to 0.354 in.)
k	5.0 to 9.0 mm (0.197 to 0.354 in.)	-	-

ADJUST FRONT DOOR

NOTE:

Make sure to turn the ignition switch off before adjusting the door lock strikers.

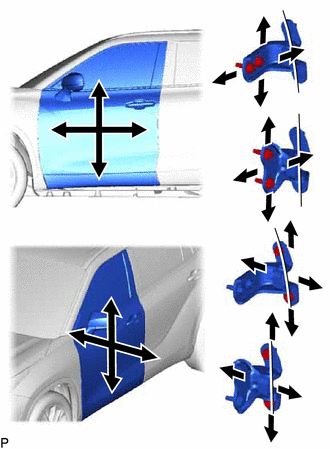

Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)
Loosen the 4 hinge bolts on the door and adjust the door position.
Tighten the 4 hinge bolts on the door after adjustment.
Torque: 26 N.m (265 kgf/cm, 19 ft.lbf)

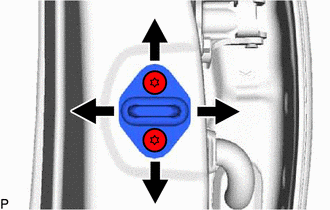

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
