Components [12/2019 - ]

Fig 1: Rear Door Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BATTERY SERVICE HOLE COVER	-	-

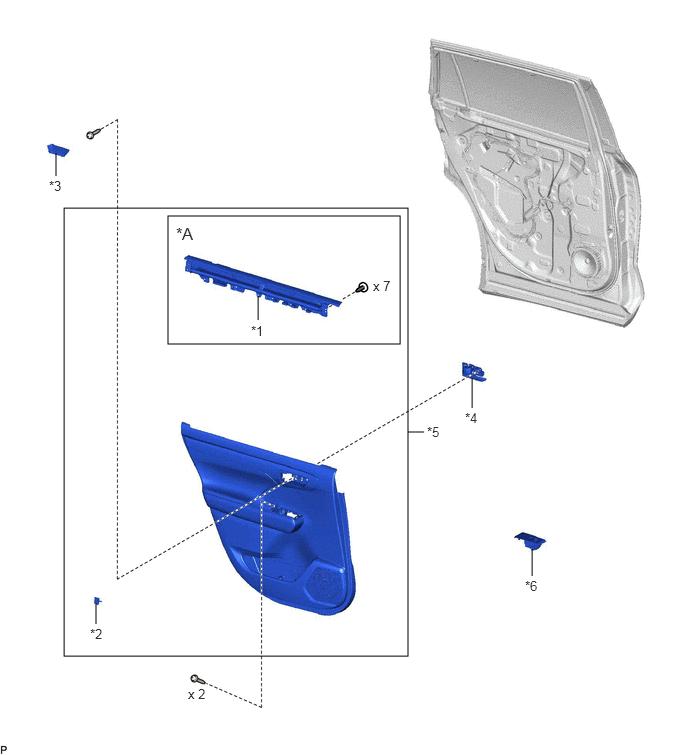

Fig 2: Rear Door Replacement Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Rear Door Sunshade	-	-
*1	REAR CURTAIN SUB-ASSEMBLY	*2	REAR DOOR ARMREST COVER
*3	REAR DOOR INSIDE HANDLE BEZEL	*4	REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
*5	REAR DOOR TRIM BOARD SUB-ASSEMBLY	*6	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

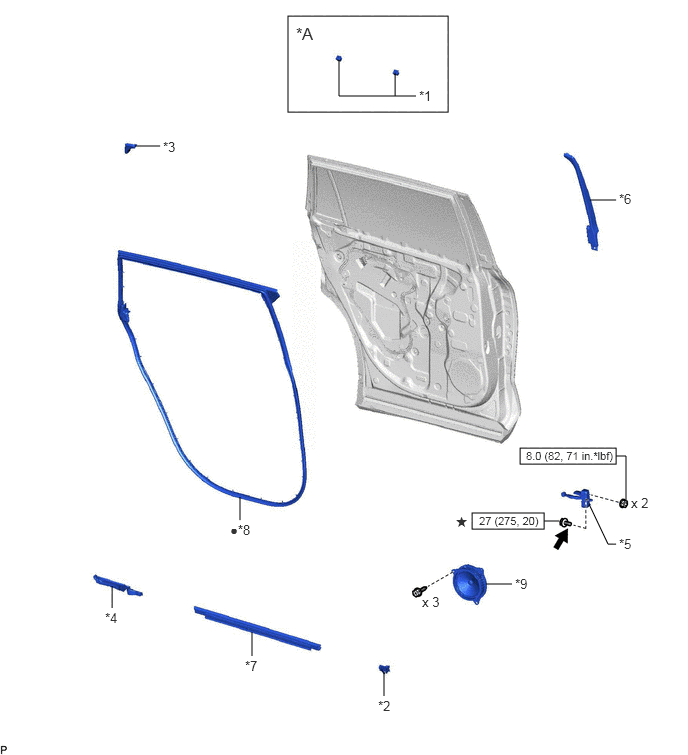

Fig 3: Rear Door Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Rear Door Sunshade	-	-
*1	CURTAIN HOOK	*2	NO. 1 REAR DOOR VENT SEAL
*3	NO. 2 REAR DOOR FRAME GARNISH	*4	QUARTER WINDOW UPPER STOP
*5	REAR DOOR CHECK ASSEMBLY	*6	REAR DOOR FRAME GARNISH
*7	REAR DOOR INNER GLASS WEATHERSTRIP	*8	REAR DOOR WEATHERSTRIP
*9	REAR SPEAKER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent	*	Precoated part

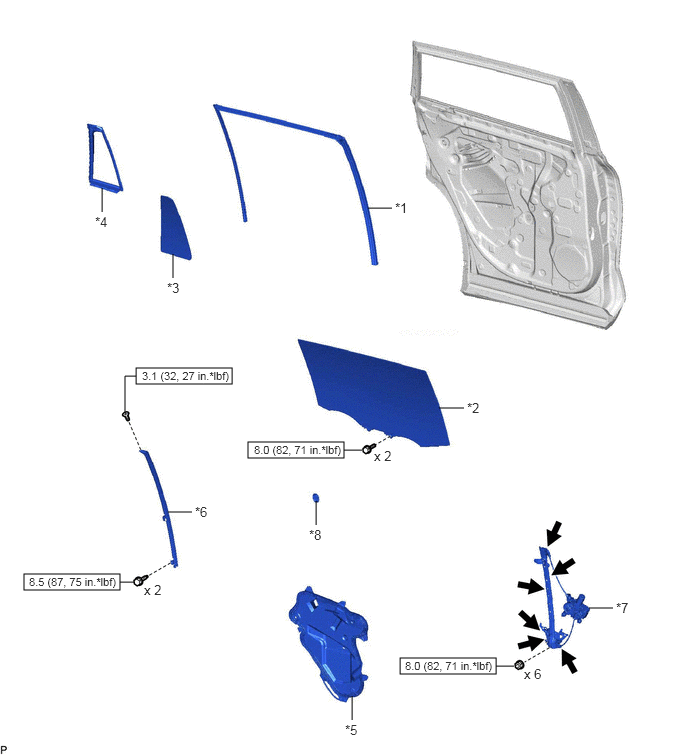

Fig 4: Rear Door Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR DOOR GLASS RUN	*2	REAR DOOR GLASS SUB-ASSEMBLY
*3	REAR DOOR QUARTER WINDOW GLASS	*4	REAR DOOR QUARTER WINDOW WEATHERSTRIP
*5	REAR DOOR SERVICE HOLE COVER	*6	REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
*7	REAR DOOR WINDOW REGULATOR ASSEMBLY	*8	HOLE PLUG
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease

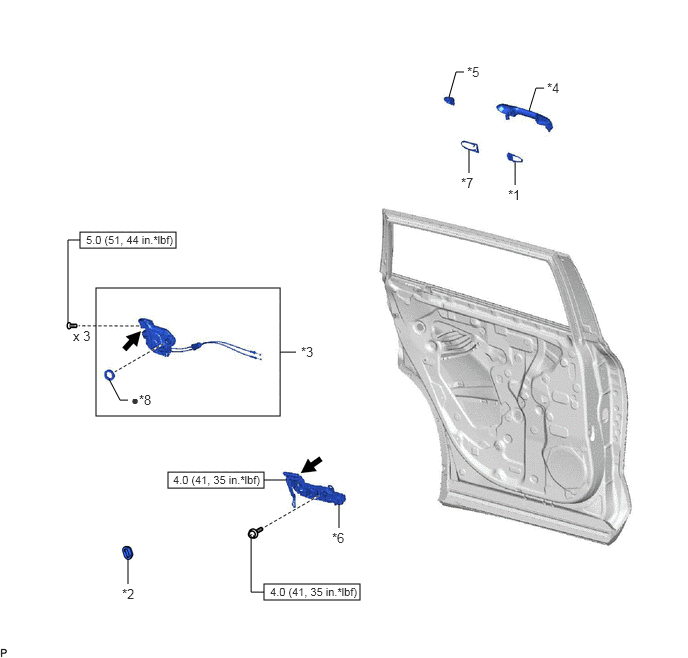

Fig 5: Rear Door Replacement Components With Torque Specifications (5 Of 7)

Callout	Description	Callout	Description
*1	REAR DOOR FRONT OUTSIDE HANDLE PAD	*2	REAR DOOR LOCK CHILD PROTECTION COVER
*3	REAR DOOR LOCK WITH MOTOR ASSEMBLY	*4	REAR DOOR OUTSIDE HANDLE ASSEMBLY
*5	REAR DOOR OUTSIDE HANDLE COVER	*6	REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
*7	REAR DOOR REAR OUTSIDE HANDLE PAD	*8	DOOR LOCK WIRE HARNESS SEAL
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	MP grease	-	-

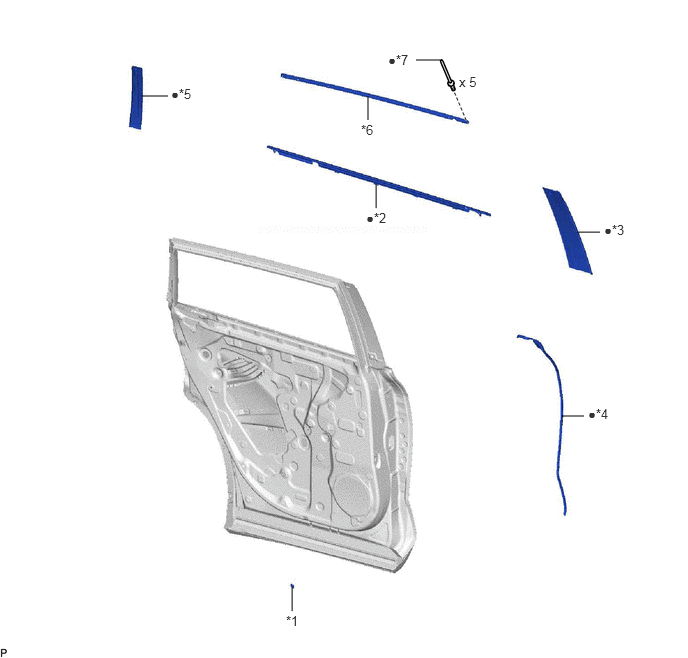

Fig 6: Rear Door Replacement Components (6 Of 7)

Callout	Description	Callout	Description
*1	DOOR WINDOW FRAME MOULDING CLIP	*2	REAR DOOR BELT MOULDING ASSEMBLY
*3	REAR DOOR FRONT WINDOW FRAME MOULDING	*4	REAR DOOR NO. 3 WEATHERSTRIP
*5	REAR DOOR REAR WINDOW FRAME MOULDING	*6	REAR DOOR UPPER WINDOW FRAME MOULDING
*7	RIVET	-	-
•	Non-reusable part	-	-

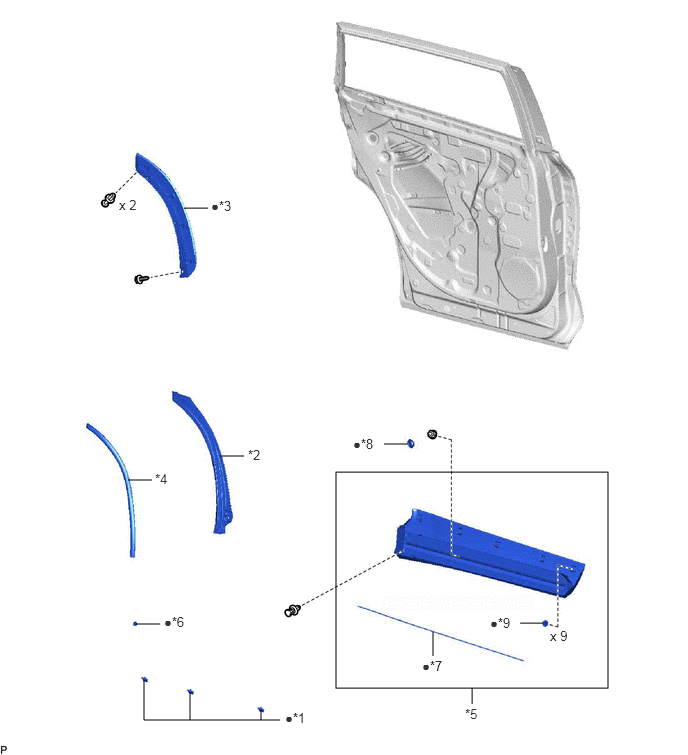

Fig 7: Rear Door Replacement Components (7 Of 7)

Callout	Description	Callout	Description
*1	REAR DOOR DUST PROOF SEAL	*2	REAR DOOR FRONT OUTSIDE SEAL
*3	REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY	*4	REAR DOOR NO. 2 WEATHERSTRIP
*5	REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY	*6	REAR DOOR PANEL CUSHION
*7	REAR DOOR UPPER OUTSIDE MOULDING PAD	*8	PLUG PLATE
*9	CLIP	-	-
•	Non-reusable part	-	-
