Engine Oil Level Sensor Circuit [10/2022 - ]: Wiring Diagram

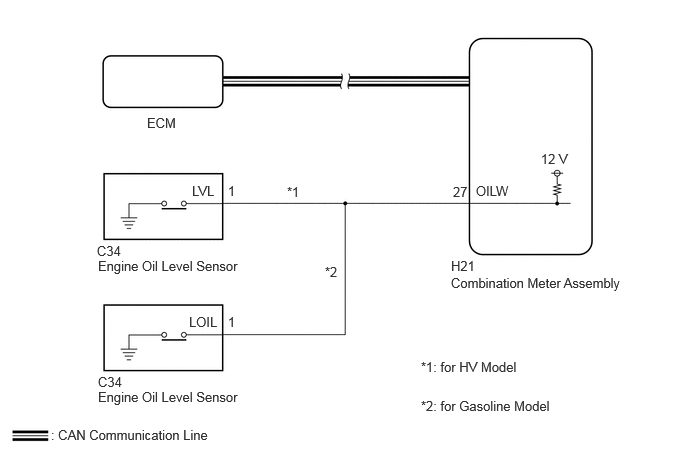

Fig 1: Engine Oil Level Sensor Circuit [10/2022 - ]

GTY985364

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
