Parts Location [12/2019 - 11/2023]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

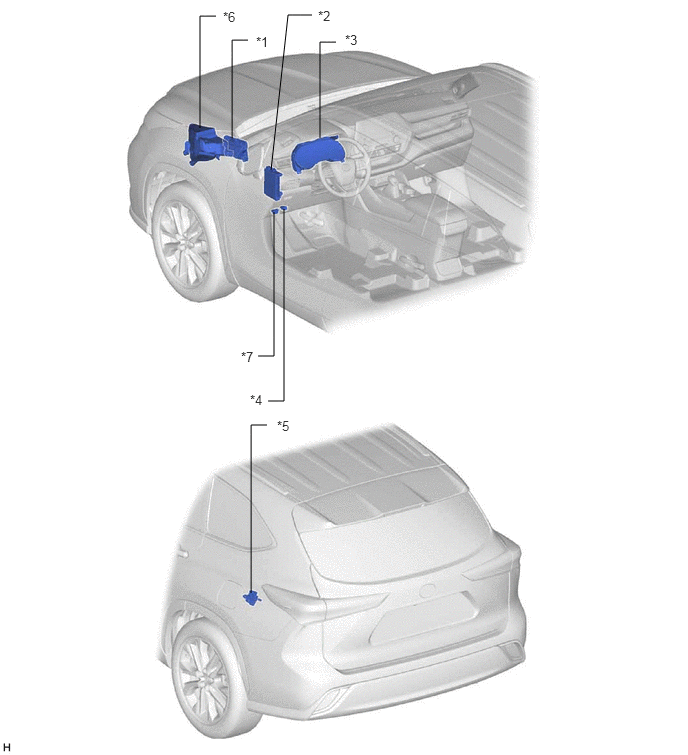

| *1 |
ECM |
*2 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- FUEL OPN RELAY |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
FUEL LID OPENER SWITCH |
| *5 |
FUEL LID LOCK WITH MOTOR ASSEMBLY |
*6 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- FUEL OPN FUSE |
| *7 |
DLC3 |
- |
- |
