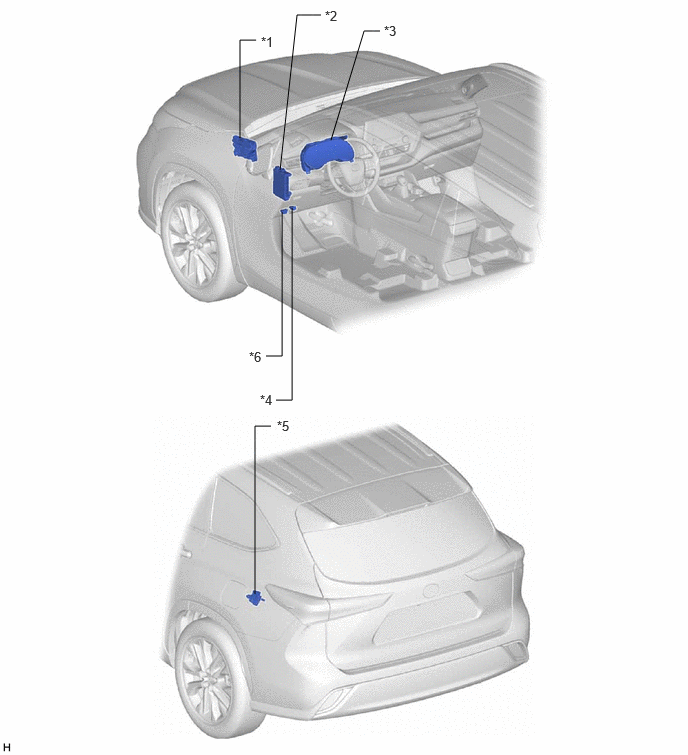

Parts Location [11/2023 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ECM |
*2 |
POWER DISTRIBUTION BOX ASSEMBLY
- FUEL OPN RELAY
- FUEL OPN FUSE |
| *3 |
COMBINATION METER ASSEMBLY |
*4 |
FUEL LID OPENER SWITCH |
| *5 |
FUEL LID LOCK WITH MOTOR ASSEMBLY |
*6 |
DLC3 |
