Section 82 (Fuel Lid Opener System (HEV) - Diagnostics & Symptom Tests)
>>
FUEL LID OPENER SYSTEM (for HV Model)
>>
System Diagram [11/2023 - ]
>>
System Diagram [11/2023 - ]
System Diagram [11/2023 - ]
WARNING:
This page is about a different variant/trim than selected.

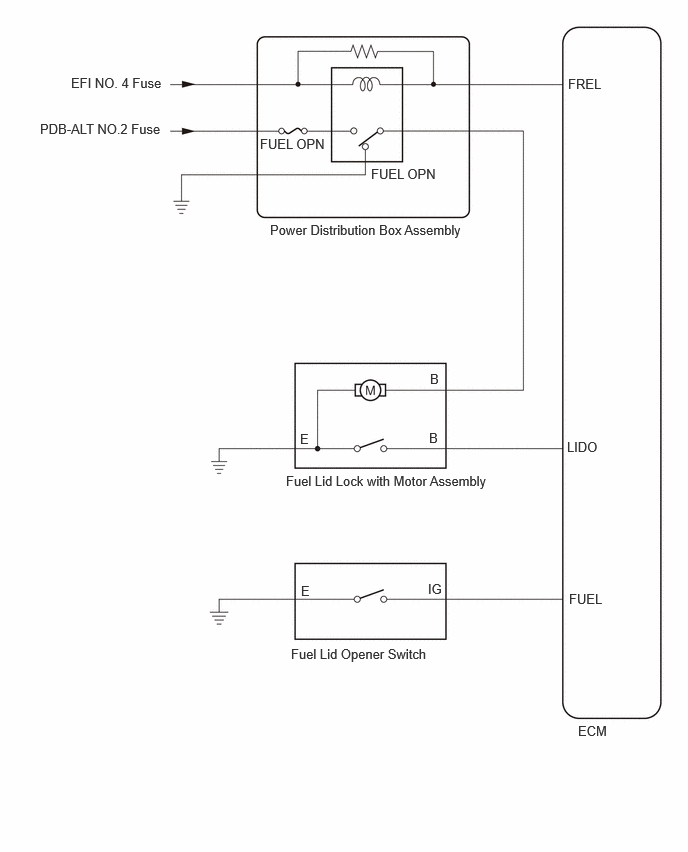

Fig 1: Fuel Lid Opener System (For HV Model) Diagram [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
