Terminals Of Ecu [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

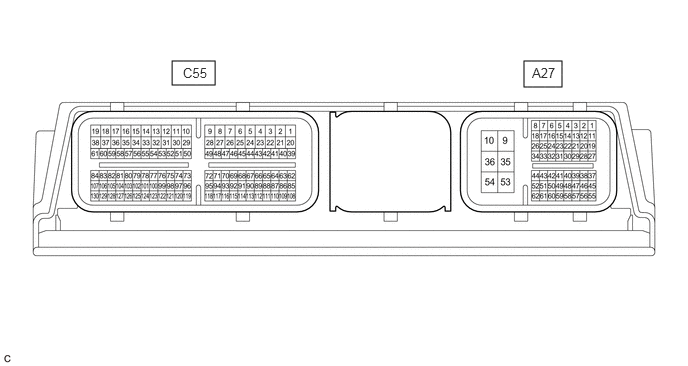

  1. CHECK ECM
    GTY870984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.
      Terminal No. (Symbol) Terminal Description Condition Specified Condition
      A27-44 (FREL) - A27-10 (E1) Fuel lid lock with motor assembly operation signal Fuel lid lock with motor assembly operating Below 1 V
      Fuel lid lock with motor assembly not operating 11 to 14 V
      A27-31 (LIDO) - A27-10 (E1) Fuel lid courtesy switch signal Fuel lid closed Below 1 V
      Fuel lid open 11 to 14 V
      A27-38 (FUEL) - A27-10 (E1) Fuel lid opener switch signal Fuel lid opener switch pressed Below 1.0 V
      Fuel lid opener switch not pressed 4.5 to 5.5 V
