Fuel Lid Opener does not Operate [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

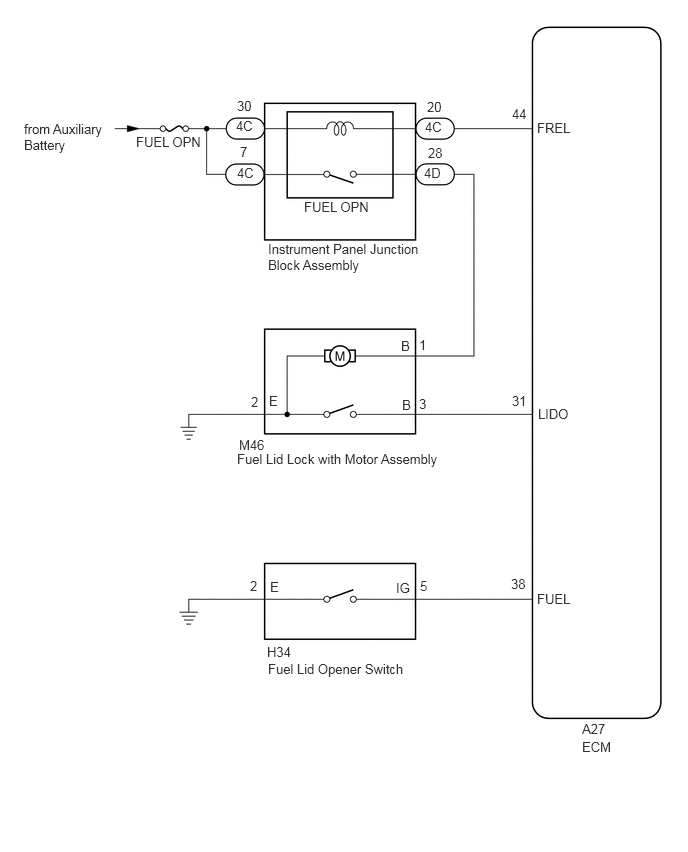

Fig 1: Fuel Lid Opener Does Not Operate Wiring Diagram [12/2019 - 11/2023]
GTY939930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
