Section 82 (Fuel Lid Opener System (HEV) - Diagnostics & Symptom Tests)
>>
FUEL LID OPENER SYSTEM (for HV Model)
>>
Fuel Lid Opener does not Operate [11/2023 - ]
>>
Wiring Diagram
Fuel Lid Opener does not Operate [11/2023 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

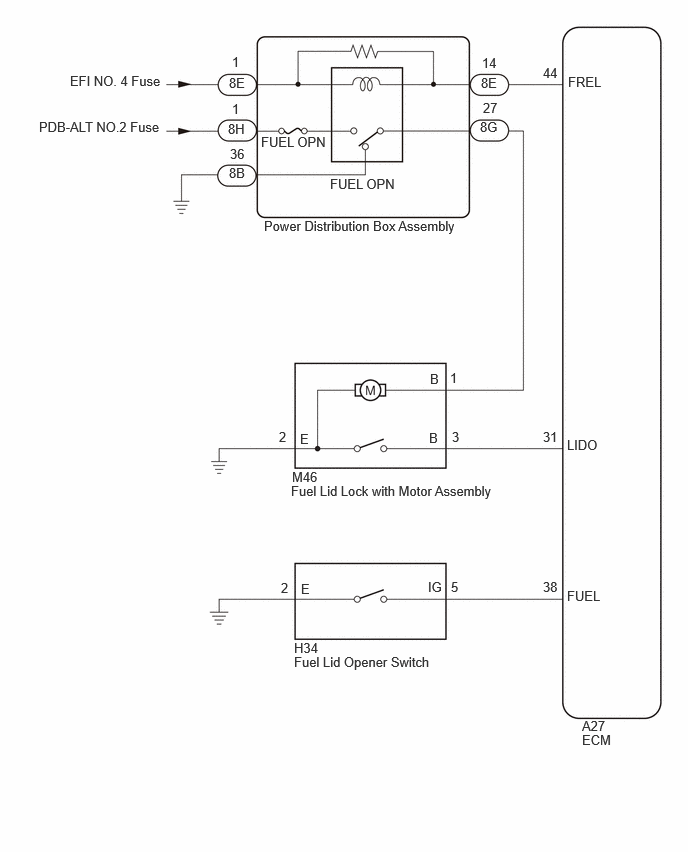

Fig 1: Fuel Lid Opener Does Not Operate Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
