Parts Location [10/2022 - 11/2023]: Illustration
| *A | for HV Model | *B | for Gasoline Model |
| *C | w/ Headup Display System | *D | w/ Seat Position Memory |
| *E | w/o Stop and Start System | - | - |
| *1 | ECM | *2 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *3 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | VACUUM WARNING SWITCH ASSEMBLY |
| *5 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*6 | METER MIRROR SUB-ASSEMBLY |
| *7 | TEMPERATURE SWITCH | *8 | LEVEL WARNING SWITCH ASSEMBLY |
| *9 | HEADLIGHT ASSEMBLY LH - HEADLIGHT ECU SUB-ASSEMBLY LH (w/ AFS) - FRONT TURN SIGNAL LIGHT SOCKET LH - FRONT TURN SIGNAL LIGHT BULB LH |
*10 | HEADLIGHT ASSEMBLY RH - HEADLIGHT ECU SUB-ASSEMBLY RH (w/ AFS) - FRONT TURN SIGNAL LIGHT SOCKET RH - FRONT TURN SIGNAL LIGHT BULB RH |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY LH - SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
*12 | OUTER REAR VIEW MIRROR ASSEMBLY RH - SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *13 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *14 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *15 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY |
- | - |

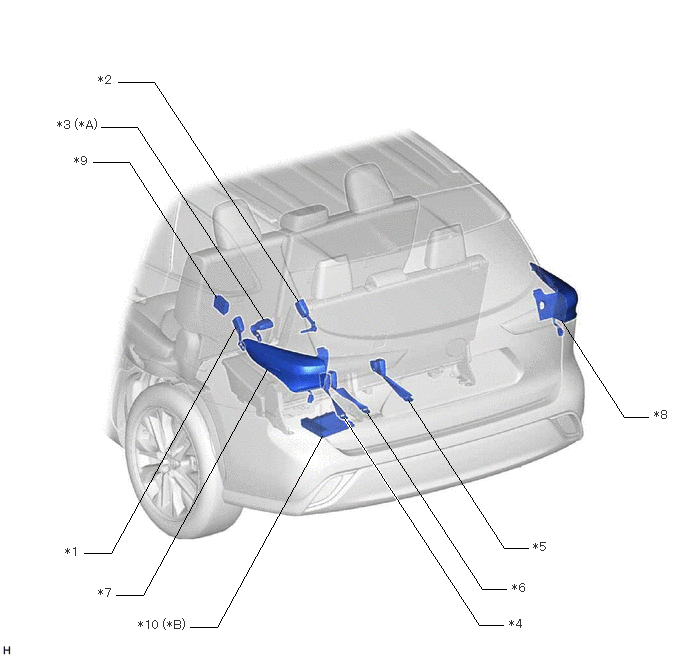

| *A | for 60/40 Split Type Rear No. 1 Seat | *B | for 11 Speakers |
| *1 | REAR SEAT INNER BELT ASSEMBLY LH | *2 | REAR SEAT INNER BELT ASSEMBLY RH |
| *3 | REAR SEAT INNER BELT ASSEMBLY | *4 | REAR NO. 2 SEAT INNER BELT ASSEMBLY LH |
| *5 | REAR NO. 2 SEAT INNER BELT ASSEMBLY RH | *6 | SEAT INNER BELT SUB-ASSEMBLY |
| *7 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT CORD LH - REAR COMBINATION LIGHT SOCKET LH - REAR TURN SIGNAL LIGHT BULB LH |
*8 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT CORD RH - REAR COMBINATION LIGHT SOCKET RH - REAR TURN SIGNAL LIGHT BULB RH |
| *9 | TIRE PRESSURE WARNING ECU AND RECEIVER | *10 | STEREO COMPONENT AMPLIFIER ASSEMBLY |
| *A | for HV Model | - | - |
| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | SPIRAL CABLE SUB-ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY |
*4 | TRIP SWITCH - ODO/TRIP SWITCH - LIGHT CONTROL RHEOSTAT UP SWITCH - LIGHT CONTROL RHEOSTAT DOWN SWITCH |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *6 | HYBRID VEHICLE CONTROL ECU |
| *7 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER-IG2 FUSE (w/o Stop and Start System) - ECU-DCC NO. 2 FUSE - HAZ FUSE |
*10 | DLC3 |
