System Diagram [12/2019 - 10/2022]

HINT:

Refer to System Diagram of CAN Communication System.

for HV Model: Refer to SYSTEM DIAGRAM [12/2019 - 10/2021] , or refer to SYSTEM DIAGRAM [10/2021 - 10/2022]

for Gasoline Model: Refer to SYSTEM DIAGRAM [12/2019 - 10/2022]

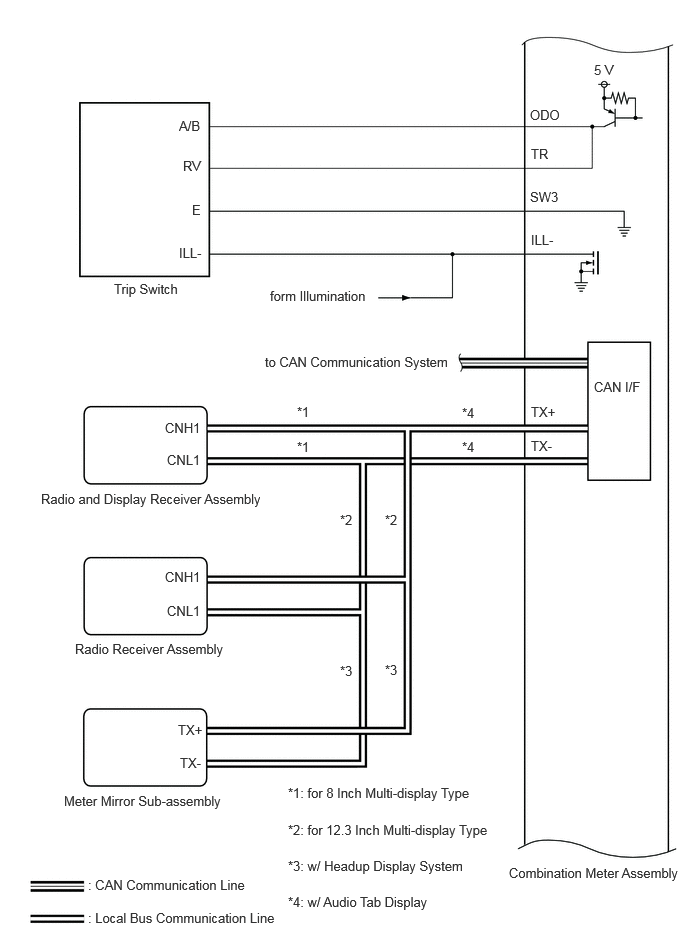

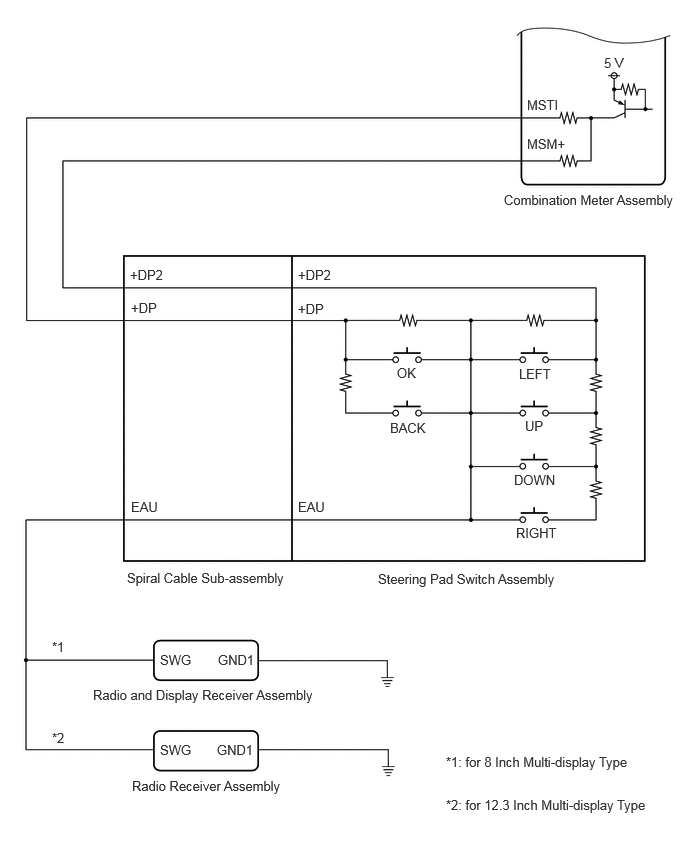

1. COMBINATION METER ASSEMBLY DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. TURN SIGNAL LIGHT DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

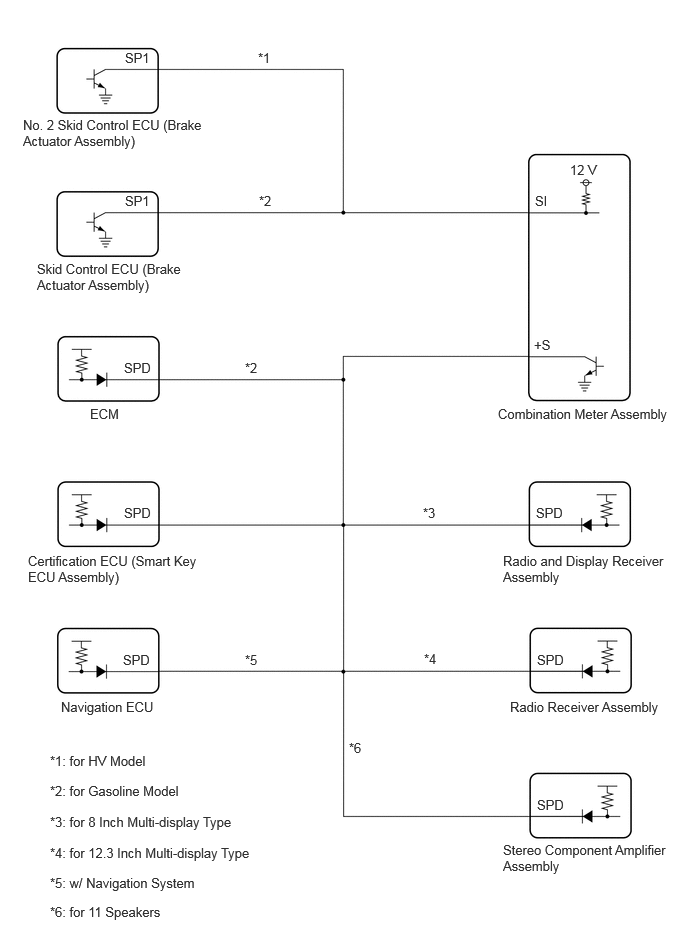

3. SPEED SIGNAL DIAGRAM

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
