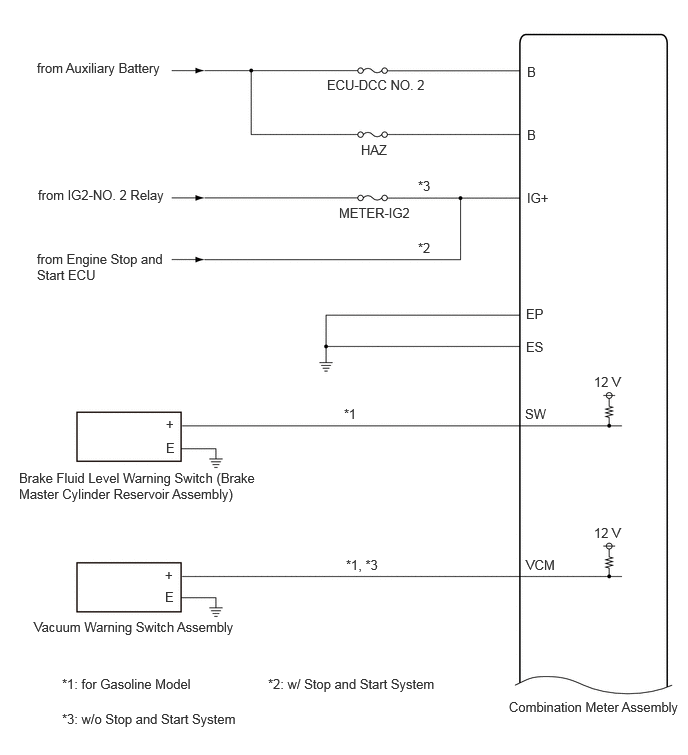

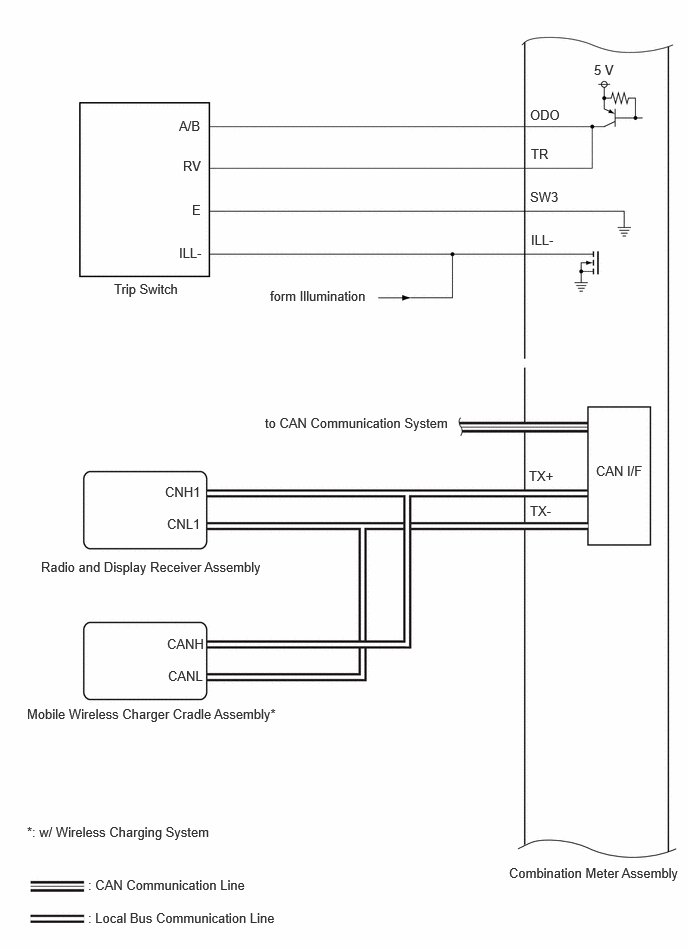

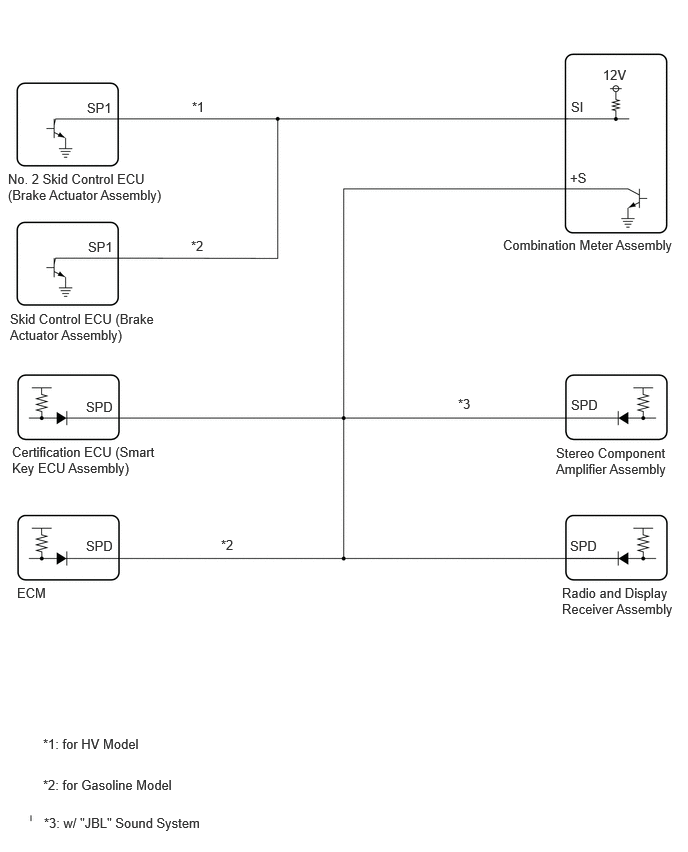

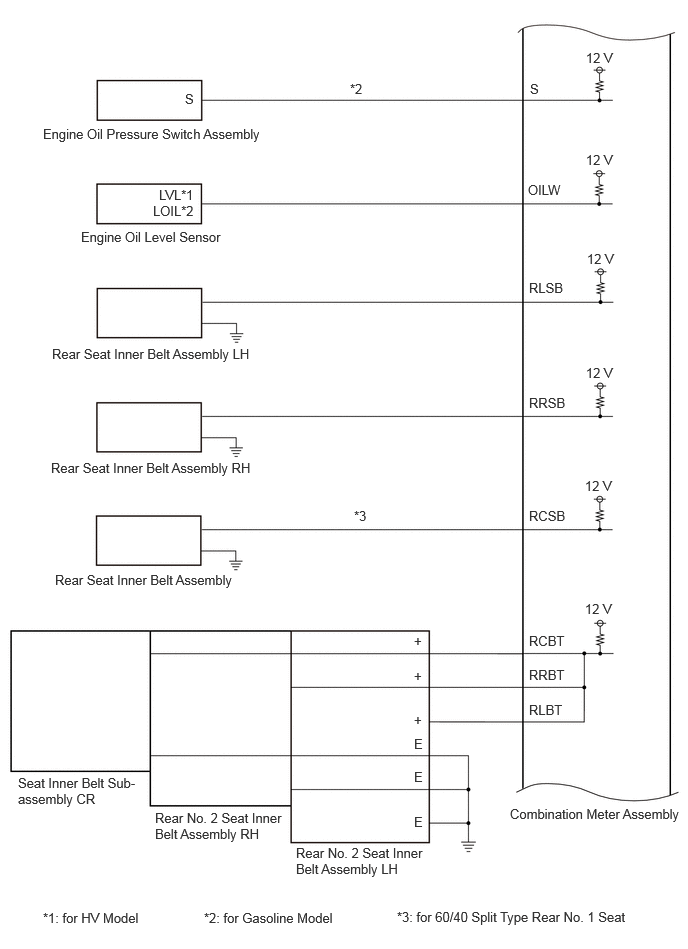

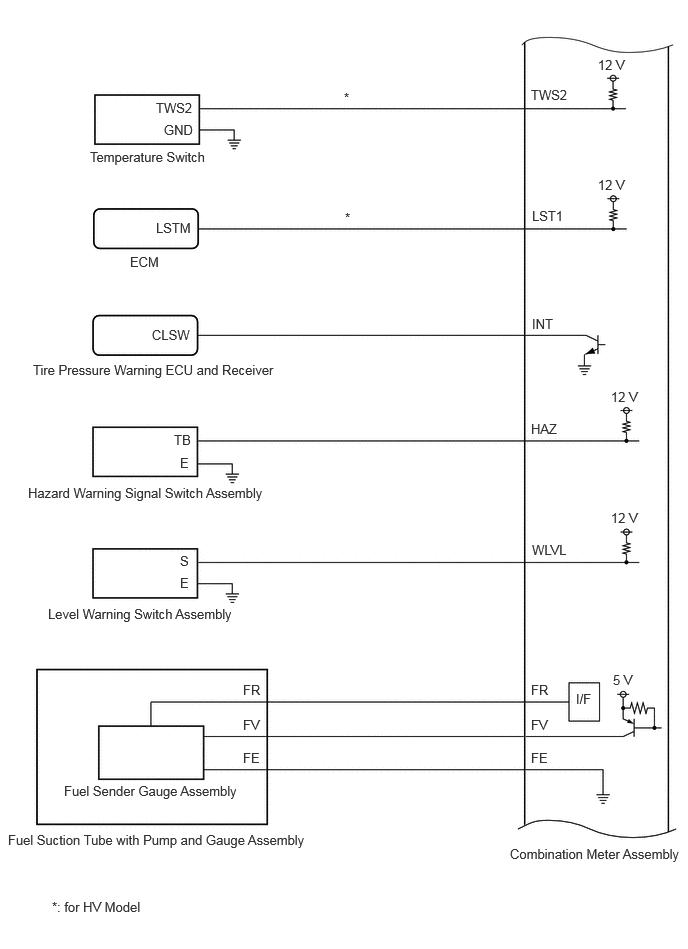

System Diagram [10/2022 - 11/2023]
HINT:
Refer to System Diagram of CAN Communication System.
for HV Model: Refer to SYSTEM DIAGRAM [10/2022 - 11/2023]
for Gasoline Model: Refer to SYSTEM DIAGRAM [10/2022 - 11/2023]
HINT:
Refer to System Diagram of CAN Communication System.
for HV Model: Refer to SYSTEM DIAGRAM [10/2022 - 11/2023]
for Gasoline Model: Refer to SYSTEM DIAGRAM [10/2022 - 11/2023]
