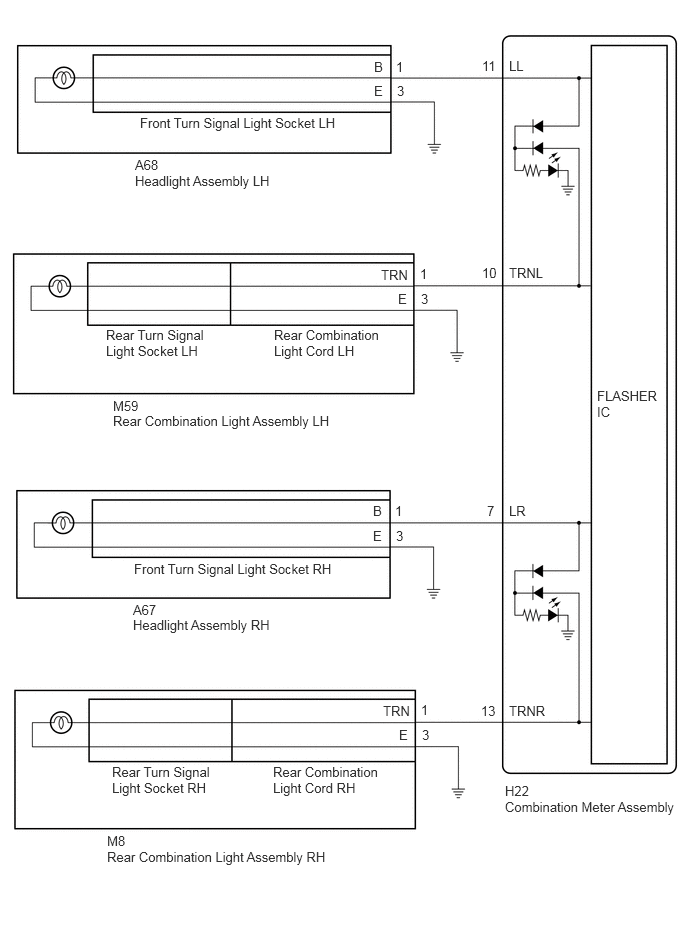

DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [12/2019 - ]: Wiring Diagram

GTY839450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
