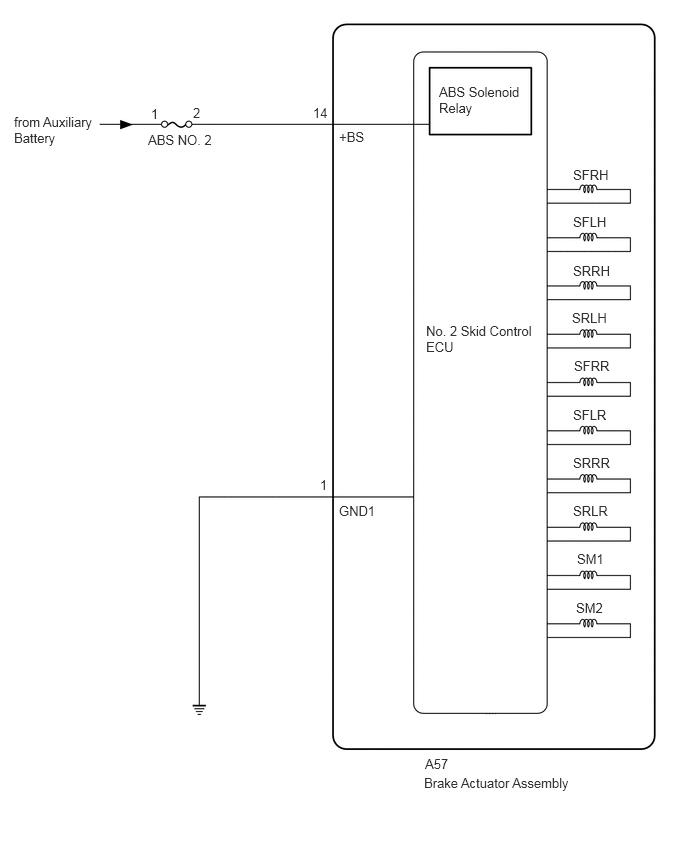

DTC C143A-7E: ABS Solenoid Control Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Actuator Stuck Off [10/2021 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY933147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
