Removal [12/2019 - 11/2023]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 1 [09/2020 - 11/2023]

  2. REMOVE FRONT TELEVISION CAMERA ASSEMBLY

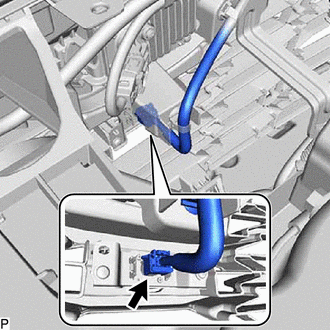

    1. Disconnect the connector.
      GTY928049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

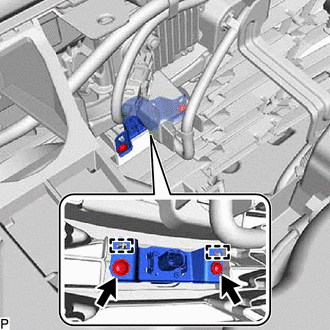

    2. Remove the 2 screws.
      GTY868661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the front television camera assembly.
