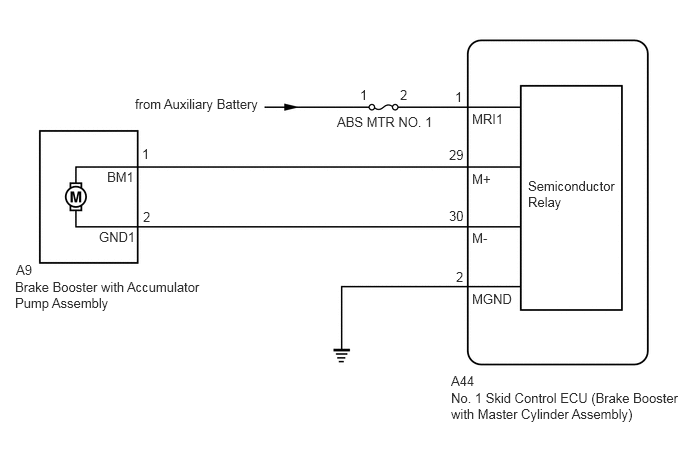

DTC C0594-00: Brake Booster Motor "A" Performance [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY943217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
