Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE PARKING ASSIST ECU WITH BRACKET
    1. Disconnect each connector.

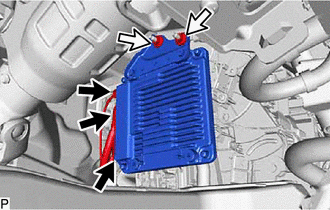

      GTY846771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and parking assist ECU with bracket.
  3. REMOVE NO. 1 PARKING ASSIST ECU BRACKET
    1. Remove the 2 screws and No. 1 parking assist ECU bracket.
      GTY846772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PARKING ASSIST ECU
