Removal [10/2022 - 11/2023]: Procedure

  1. ECU DATA SAVE

    Refer to CALIBRATION [10/2022 - 11/2023]

  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  3. REMOVE PARKING ASSIST ECU WITH BRACKET
    1. Disconnect each connector.

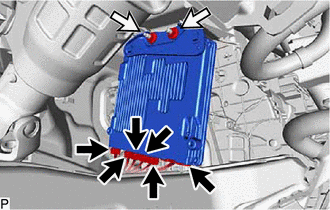

      GTY1121713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and parking assist ECU with bracket.
  4. REMOVE NO. 1 PARKING ASSIST ECU BRACKET
    1. Remove the 2 screws and No. 1 parking assist ECU bracket.

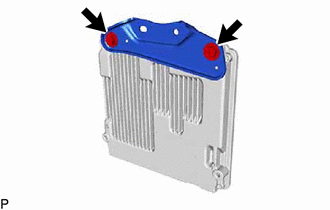

      GTY1122288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE PARKING ASSIST ECU
