Section 37 (Electronically Controlled Brake System (HV) - Diagnostic Codes (08 Of 11))
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [11/2023 - ]
>>

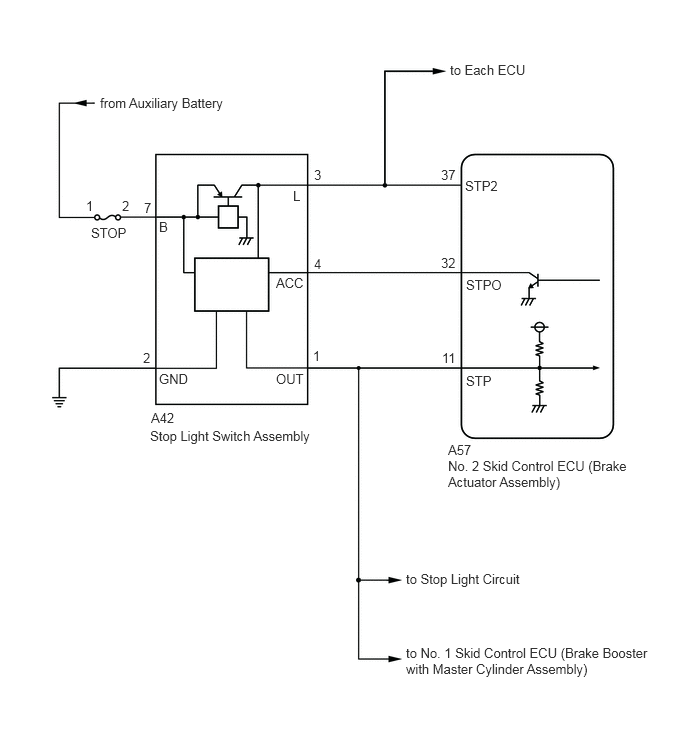

Wiring Diagram
DTC C1380-7E: Stop Lamp Relay Actuator Stuck On [11/2023 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
