ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [12/2019 - 10/2021]
>>
Wiring Diagram
DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [12/2019 - 10/2021]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

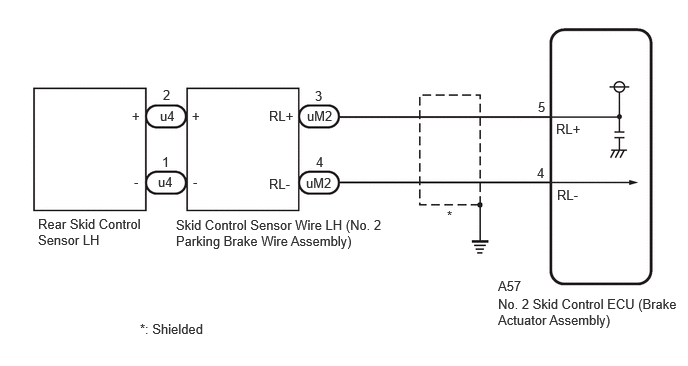

for AWD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

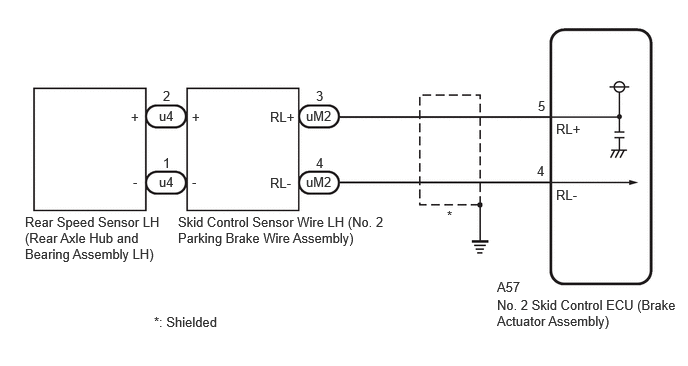

for 2WD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
