Section 105 (Electronically Controlled Brake System (HV) - Diagnostic Codes (02 Of 11))
>>
ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HV Model)
>>
DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [10/2022 - 11/2023]
>>
Wiring Diagram
DTC C050C-12: Left Rear Wheel Speed Sensor Circuit Short to Battery [10/2022 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

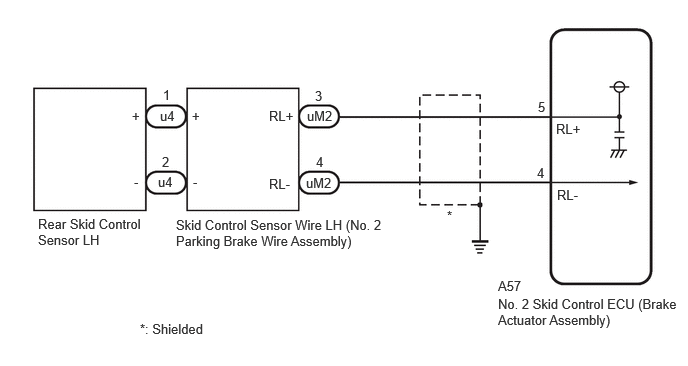

for AWD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

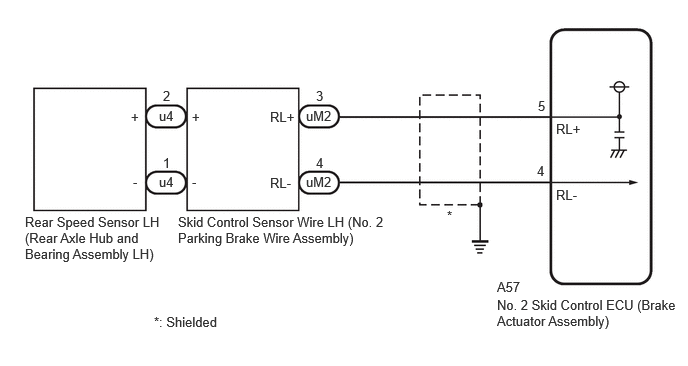

for 2WD
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
