Section 89 (Electric Parking Brake System (HV) - Diagnostics - Introduction)
>>
ELECTRIC PARKING BRAKE SYSTEM (for HV Model)
>>

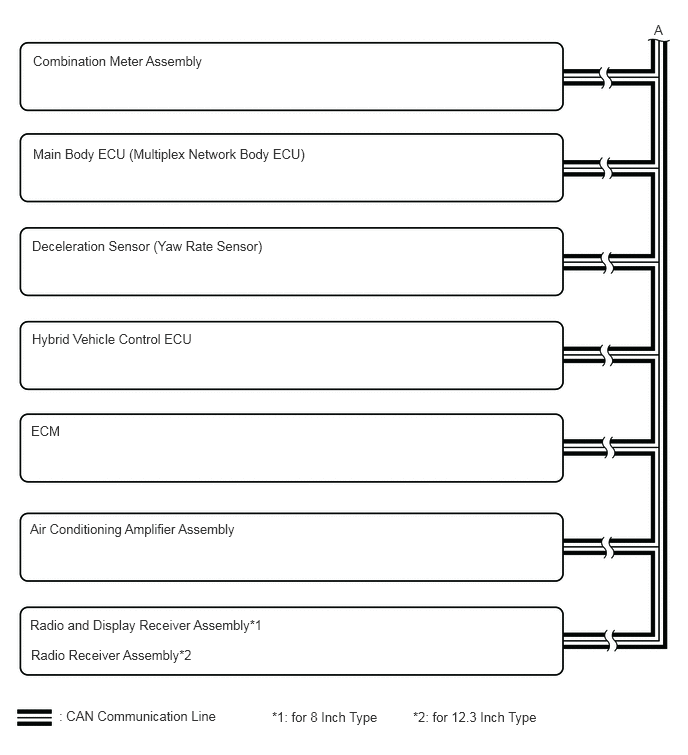

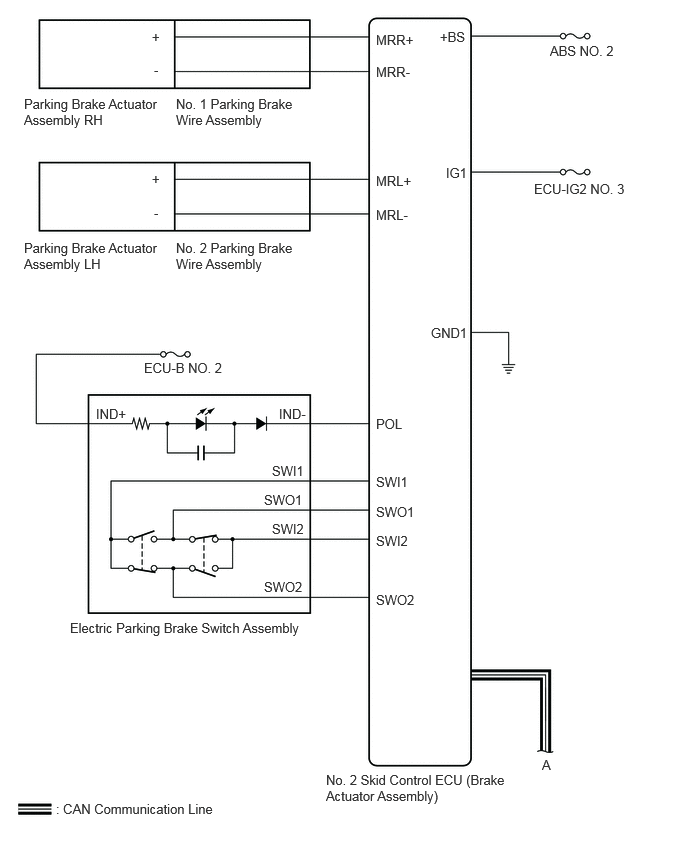

System Diagram [12/2019 - 10/2022]
>>
System Diagram [12/2019 - 10/2022]
System Diagram [12/2019 - 10/2022]
WARNING:
This page is about a different variant/trim than selected.
