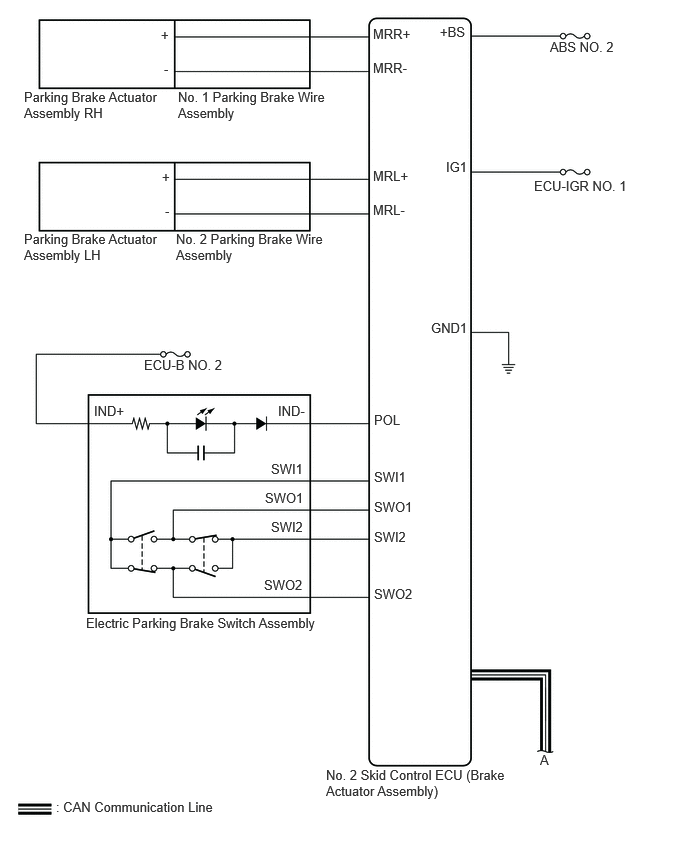

System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

GTY1178626

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1118150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
