Components [12/2019 - ]

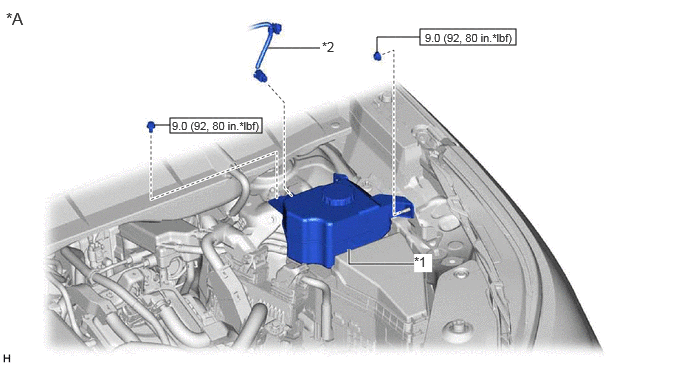

Fig 1: Front Disc Brake Pad Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY	*2	WIRE HARNESS
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

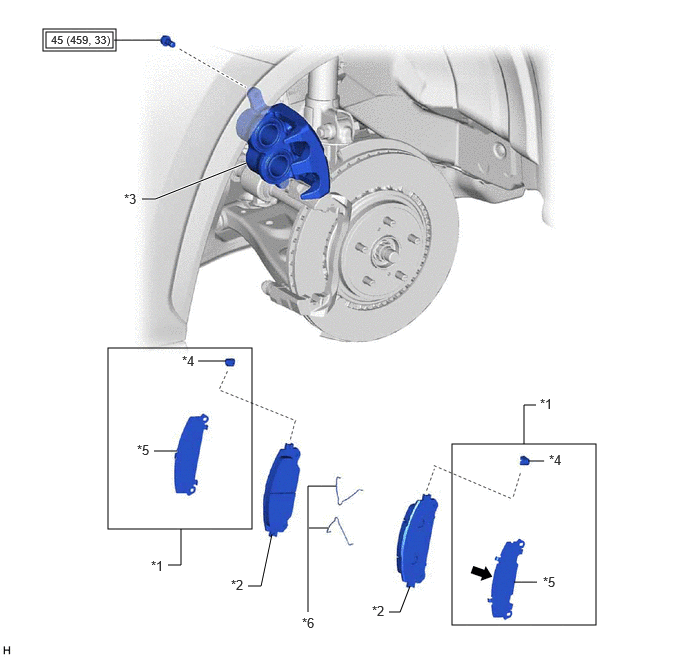

Fig 2: Front Disc Brake Pad Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT	*2	FRONT DISC BRAKE PAD
*3	FRONT DISC BRAKE CYLINDER ASSEMBLY	*4	FRONT DISC BRAKE PAD WEAR INDICATOR PLATE
*5	FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM	*6	ANTI-SQUEAL SPRING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		Brake caliper grease (Part No. 08887-80609)
