Components [10/2022 - ]

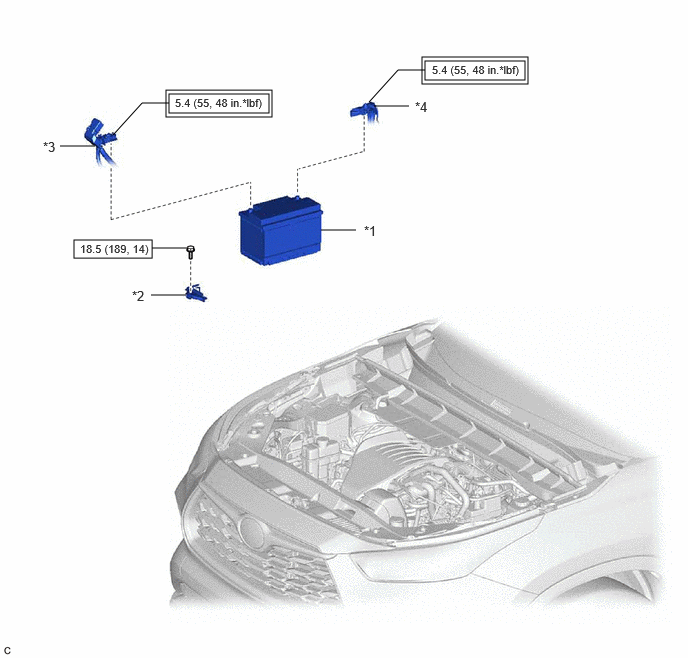

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY | *2 | NO. 2 BATTERY CLAMP |
| *3 | POSITIVE BATTERY TERMINAL | *4 | NEGATIVE BATTERY TERMINAL |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
