Components [11/2023 - ]

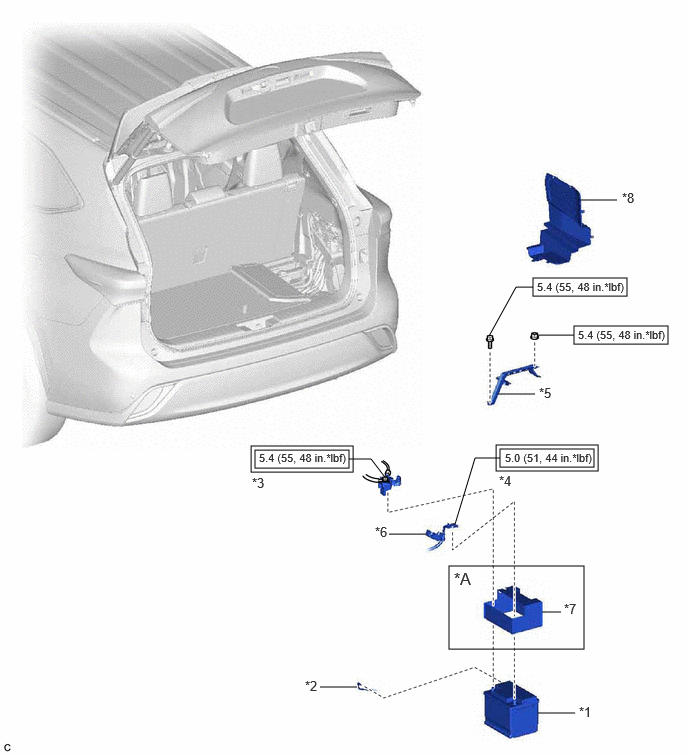

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Battery Insulator | - | - |
| *1 | AUXILIARY BATTERY | *2 | BATTERY HOSE |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | *4 | POSITIVE AUXILIARY BATTERY TERMINAL |
| *5 | BATTERY CLAMP SUB-ASSEMBLY | *6 | BATTERY TERMINAL CONNECTOR COVER |
| *7 | BATTERY INSULATOR | *8 | BATTERY SERVICE HOLE COVER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
