Components [12/2019 - ]

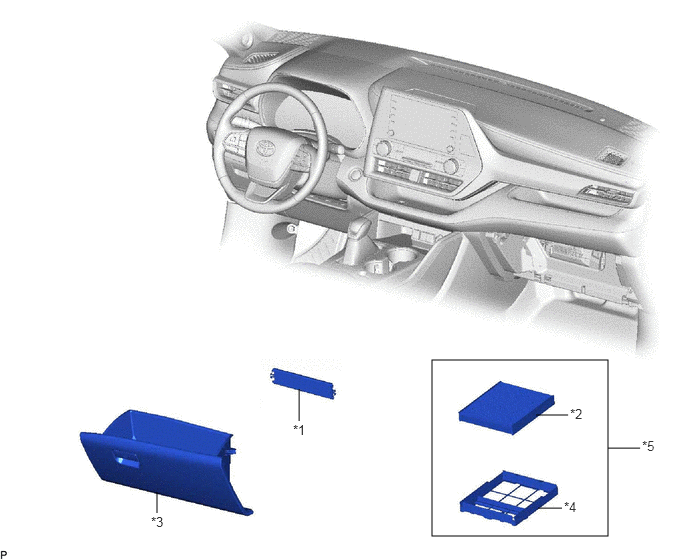

Fig 1: Air Conditioning Filter Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR FILTER COVER PLATE	*2	CLEAN AIR FILTER
*3	GLOVE COMPARTMENT DOOR SUB-ASSEMBLY	*4	AIR FILTER CASE
*5	AIR FILTER SUB-ASSEMBLY	-	-
