Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT TURN SIGNAL LIGHT BULB

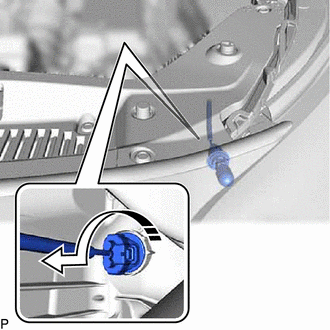

    1. Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY937732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction
    2. Remove the front turn signal light bulb from the front turn signal light socket.
