Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT SIDE MARKER LIGHT BULB

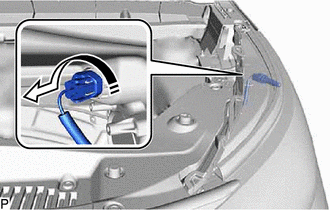

    1. Turn the front side marker light socket with the front side marker light bulb as shown in the illustration to disconnect them as a unit.
      GTY858059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction
    2. Remove the front side marker light bulb from the front side marker light socket.
