Installation [12/2019 - ]: Procedure

  1. INSTALL FRONT SIDE MARKER LIGHT BULB
    1. Install the front side marker light bulb to the front side marker light socket.

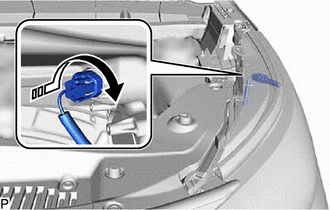

    2. Turn the front side marker light socket with the front side marker light bulb as shown in the illustration to install them as a unit.
      GTY854594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
