Installation [12/2019 - ]: Procedure

  1. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb to the rear turn signal light socket.

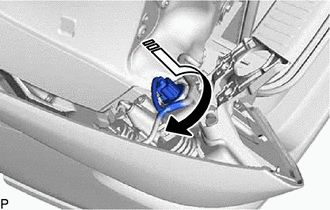

    2. Turn the rear turn signal light socket with the rear turn signal light bulb as shown in the illustration to install them as a unit.
      GTY868683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL REAR COMBINATION LIGHT SUB-ASSEMBLY

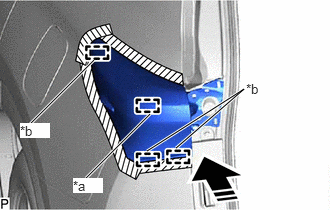

    1. Engage the 3 guides and pin to temporarily install the rear combination light sub-assembly as shown in the illustration.
      GTY848770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
      Install in this Direction
    2. Install the rear combination light sub-assembly with the 2 screws.
    3. Remove the protective tape.
  3. INSTALL REAR COMBINATION LIGHT COVER

    Refer to PROCEDURE - Step 5
