Parts Location [11/2023 - ]: Illustration

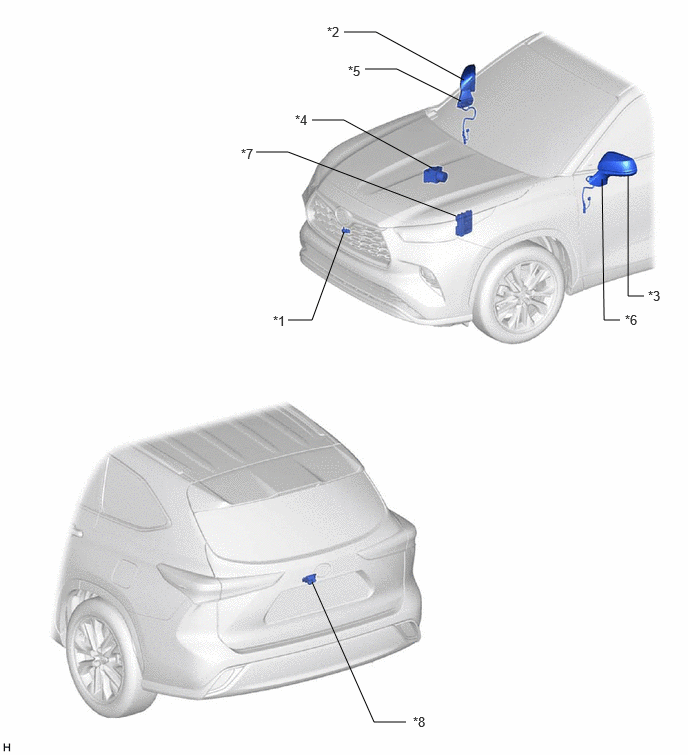

| *1 | FRONT TELEVISION CAMERA ASSEMBLY | *2 | SIDE TELEVISION CAMERA ASSEMBLY RH |
| *3 | SIDE TELEVISION CAMERA ASSEMBLY LH | *4 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU (for Gasoline Model) - NO. 2 SKID CONTROL ECU (for HV Model) |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *6 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *7 | ECM | *8 | REAR TELEVISION CAMERA ASSEMBLY |

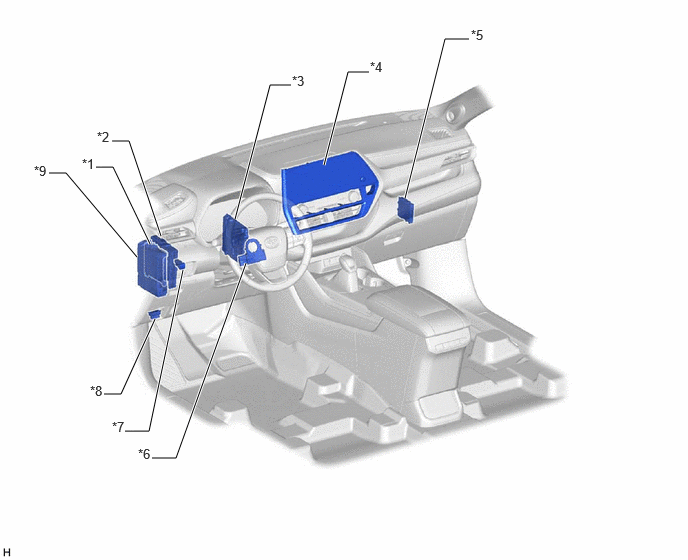

| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | HYBRID VEHICLE CONTROL ECU (for HV Model) |
| *3 | PARKING ASSIST ECU | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *5 | CLEARANCE WARNING ECU ASSEMBLY | *6 | STEERING SENSOR |
| *7 | PANORAMIC VIEW MONITOR SWITCH (FRONT WIDE VIEW SWITCH) | *8 | DLC3 |
| *9 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 3 FUSE - ECU-B NO. 2 FUSE |
- | - |
