Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  2. REMOVE BACK-UP LIGHT BULB

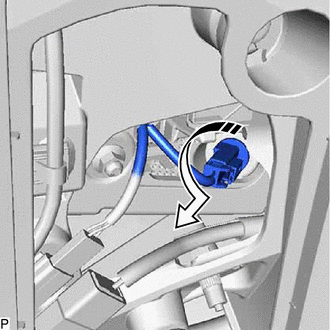

    1. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.
      GTY897735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disconnect in this Direction
    2. Remove the back-up light bulb from the rear light socket and wire.
