Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR FINISH PANEL COVER

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 14 [11/2023 - ]

  2. REMOVE LICENSE PLATE LIGHT LENS

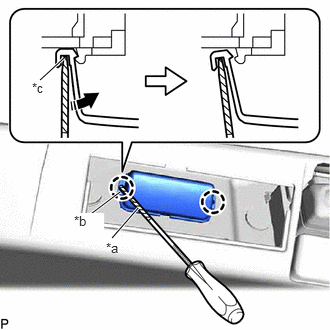

    1. Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.
      GTY940963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Insert into the hole
      *c License Plate Light Lens Hole
      Remove in this Direction
  3. REMOVE LICENSE PLATE LIGHT BULB
    1. Remove the license plate light bulb from the license plate light housing.
