Disassembly [12/2019 - ]: Procedure

  1. REMOVE HEADLIGHT ECU SUB-ASSEMBLY (w/ AFS)

    See step  2 [12/2019 - 11/2023], or see step 2 [11/2023 - ]

  2. REMOVE HEADLIGHT GASKET (w/ AFS)

    See step  3 [12/2019 - 11/2023], or see step 3 [11/2023 - ]

  3. REMOVE FRONT TURN SIGNAL LIGHT BULB

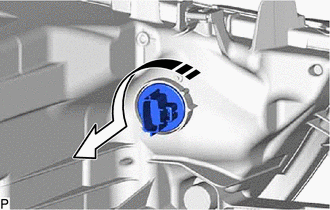

    1. Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to remove them as a unit.
      GTY842555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the front turn signal light bulb from the front turn signal light socket.
  4. REMOVE FRONT TURN SIGNAL LIGHT SOCKET
  5. REMOVE FRONT SIDE MARKER LIGHT BULB

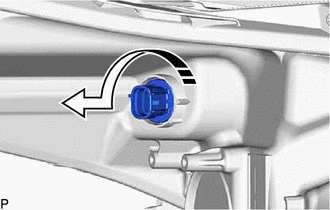

    1. Turn the front side marker light socket with the front side marker light bulb as shown in the illustration to remove them as a unit.
      GTY854611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the front side marker light bulb from the front side marker light socket.
  6. REMOVE FRONT SIDE MARKER LIGHT SOCKET
