Panoramic View Monitor System - Diagnostics - Introduction (1 Of 2)
>>
Panoramic View Monitor System
>>
System Diagram [10/2022 - 11/2023]
>>
System Diagram [10/2022 - 11/2023]
System Diagram [10/2022 - 11/2023]

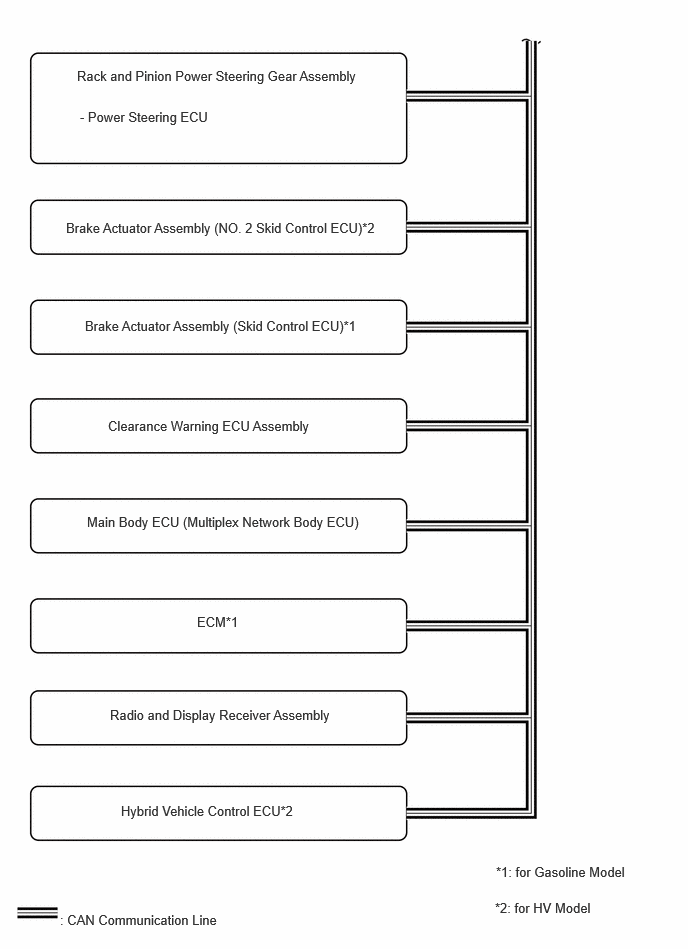

Fig 1: Panoramic View Monitor System Diagram [10/2022 - 11/2023] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

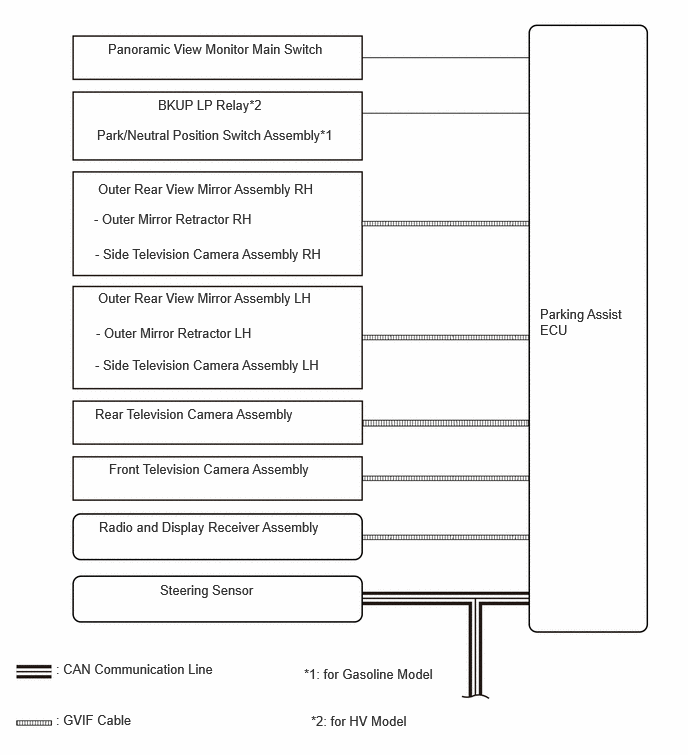

Fig 2: Panoramic View Monitor System Diagram [10/2022 - 11/2023] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
