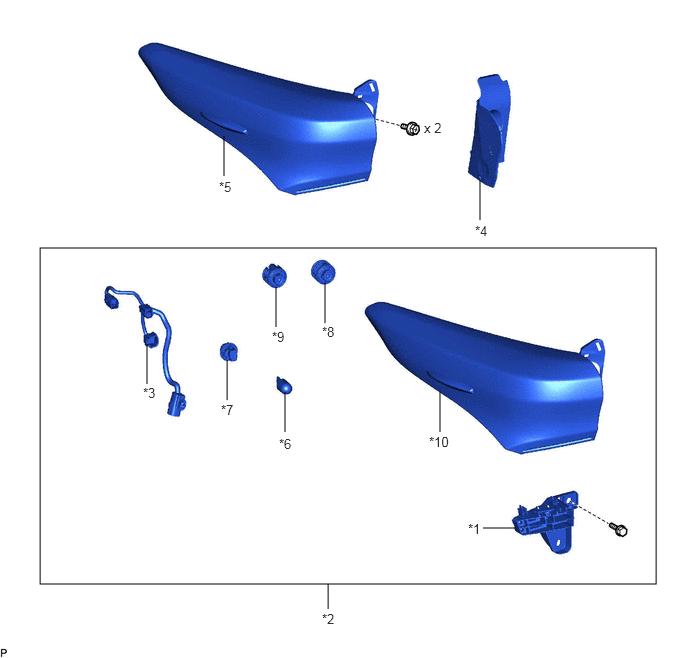

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR BUMPER UPPER RETAINER | *2 | REAR COMBINATION LIGHT ASSEMBLY |
| *3 | REAR COMBINATION LIGHT CORD | *4 | REAR COMBINATION LIGHT COVER |
| *5 | REAR COMBINATION LIGHT SUB-ASSEMBLY | *6 | REAR TURN SIGNAL LIGHT BULB |
| *7 | REAR TURN SIGNAL LIGHT SOCKET | *8 | STOP LIGHT LED |
| *9 | TAIL LIGHT LED | *10 | REAR COMBINATION LIGHT LENS AND BODY |
