Components [12/2019 - ]

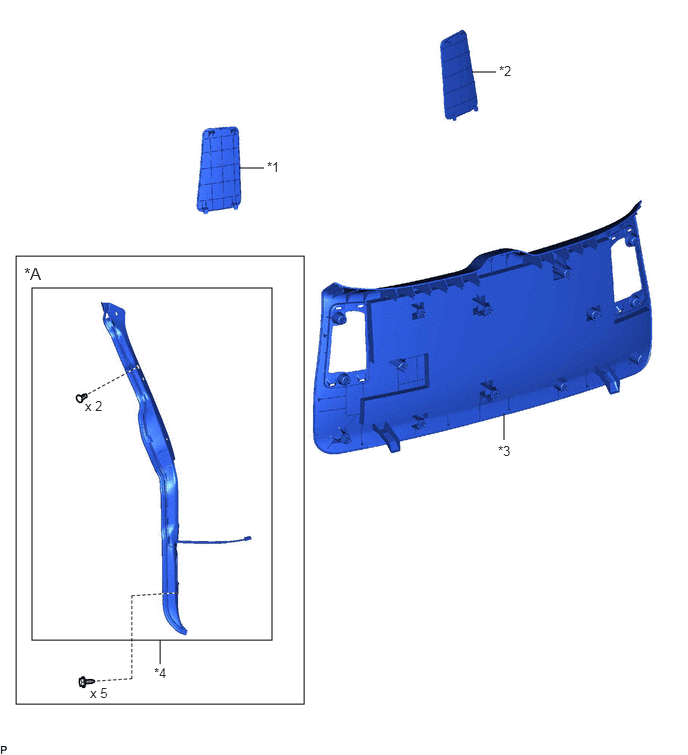

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Power Back Door | - | - |
| *1 | BACK DOOR SERVICE HOLE COVER LH | *2 | BACK DOOR SERVICE HOLE COVER RH |
| *3 | BACK DOOR TRIM PANEL ASSEMBLY | *4 | POWER BACK DOOR SENSOR ASSEMBLY |

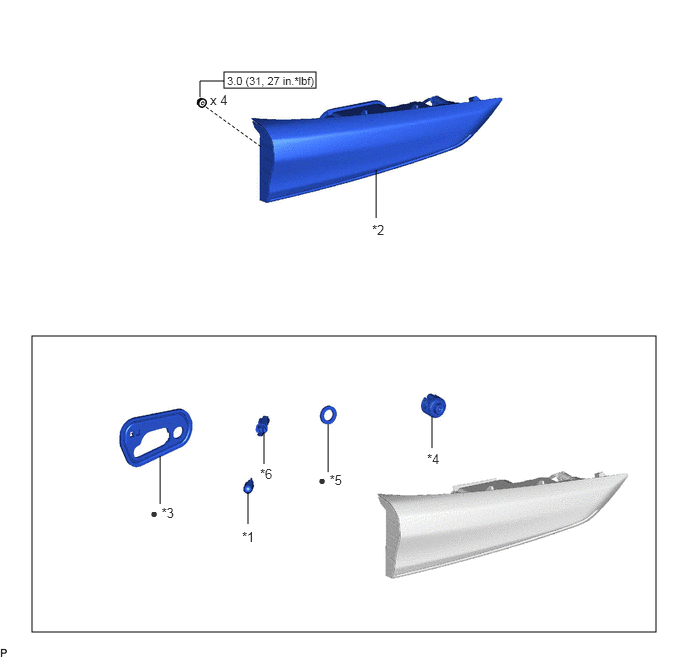

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BACK-UP LIGHT BULB | *2 | REAR LIGHT ASSEMBLY |
| *3 | REAR LIGHT GASKET | *4 | REAR LIGHT LED |
| *5 | REAR LIGHT PACKING | *6 | REAR LIGHT SOCKET AND WIRE |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
