Components [12/2019 - ]

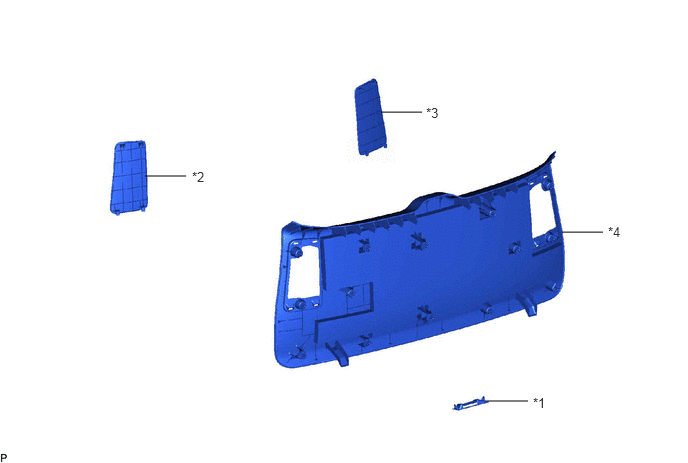

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BACK DOOR FINISH PANEL COVER | *2 | BACK DOOR SERVICE HOLE COVER LH |
| *3 | BACK DOOR SERVICE HOLE COVER RH | *4 | BACK DOOR TRIM PANEL ASSEMBLY |

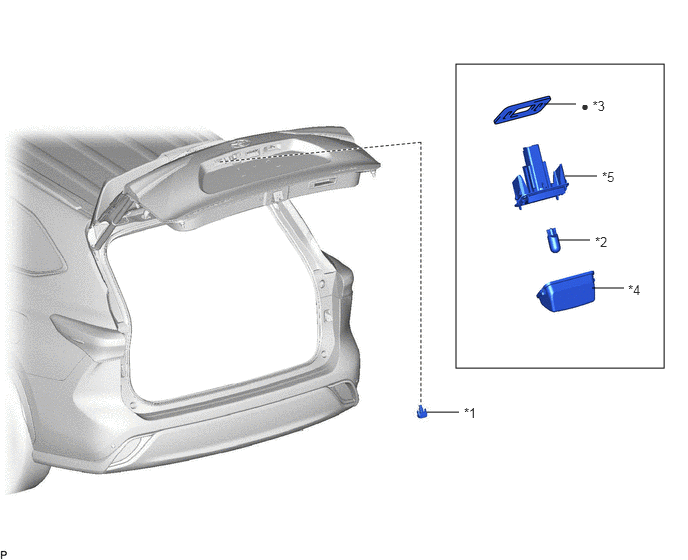

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LICENSE PLATE LIGHT ASSEMBLY | *2 | LICENSE PLATE LIGHT BULB |
| *3 | LICENSE PLATE LIGHT PACKING | *4 | LICENSE PLATE LIGHT LENS |
| *5 | LICENSE PLATE LIGHT BODY | - | - |
| • | Non-reusable part | - | - |
