Components [12/2019 - ]

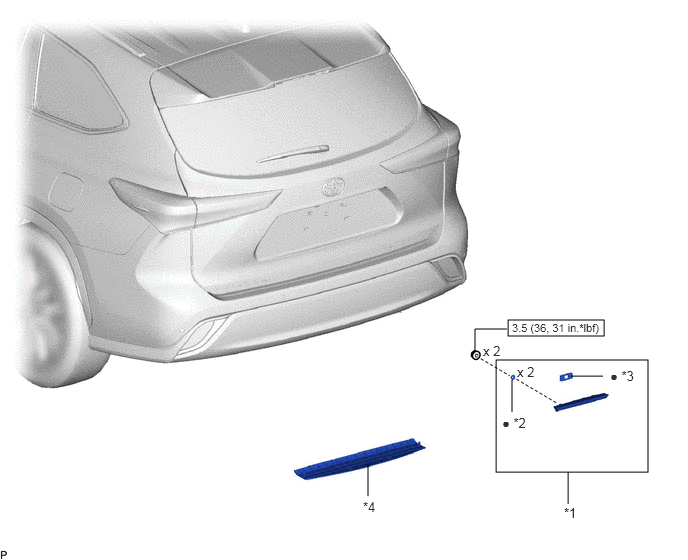

Fig 1: High Mounted Stop Light Assembly Replacement Components With Torque Specifications
GTY918835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CENTER STOP LIGHT ASSEMBLY *2 CENTER STOP LIGHT COVER
*3 CENTER STOP LIGHT GASKET *4 DECK TRIM POCKET COVER PLATE
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
