Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Hybrid Vehicle Control ECU Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)

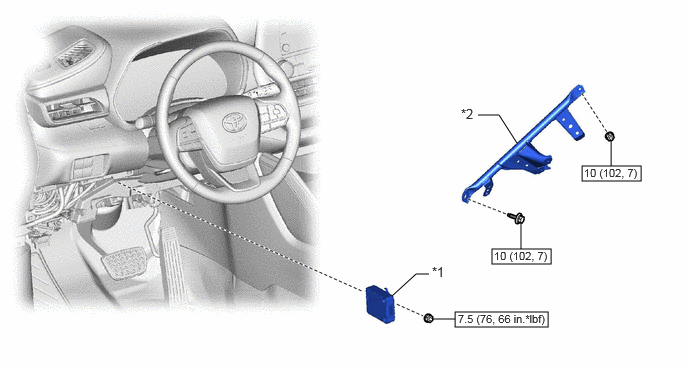

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | VEHICLE APPROACHING SPEAKER CONTROLLER | *2 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

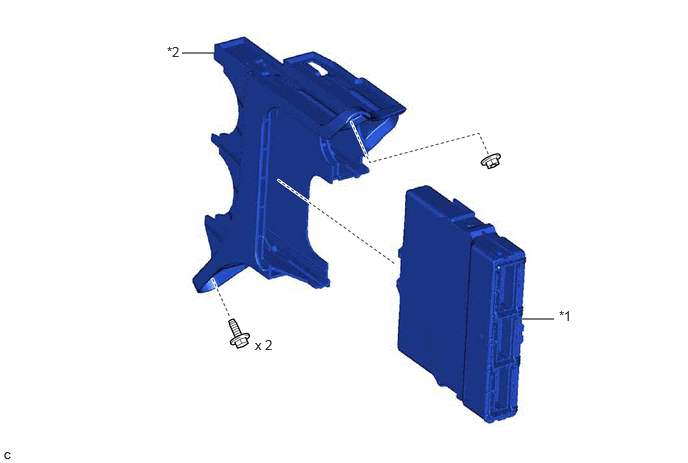

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HYBRID VEHICLE CONTROL ECU | *2 | ECU INTEGRATION BOX LH |
