Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.

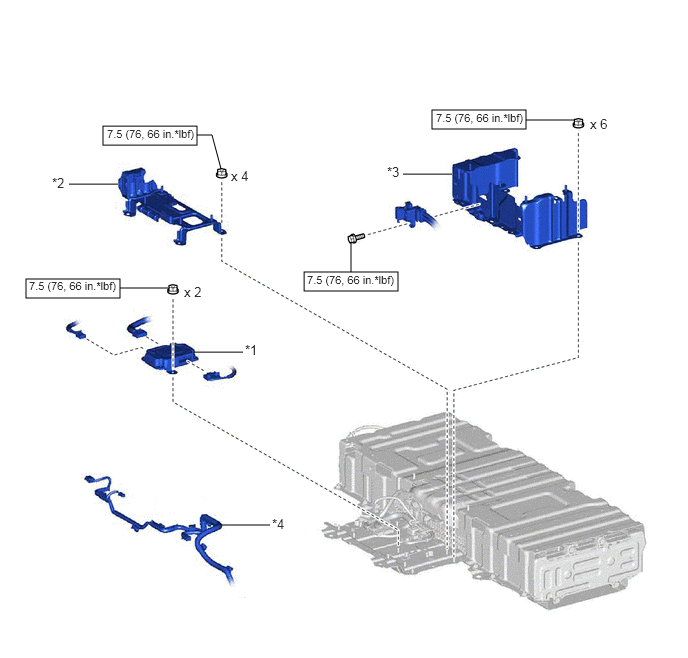

Fig 1: Battery Voltage Sensor Replacement Components With Torque Specifications
GTY886523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BATTERY VOLTAGE SENSOR *2 NO. 6 HV BATTERY CARRIER BRACKET
*3 NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY *4 FLOOR WIRE
N.m (kgf/cm, ft.lbf): Specified torque - -
