Components [12/2019 - ]

WARNING: This page is about a different variant/trim than selected.
Fig 1: HV Battery Replacement Components (1 Of 7)
GTY918561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HYBRID BATTERY SERVICE PLUG COVER *2 SERVICE PLUG GRIP

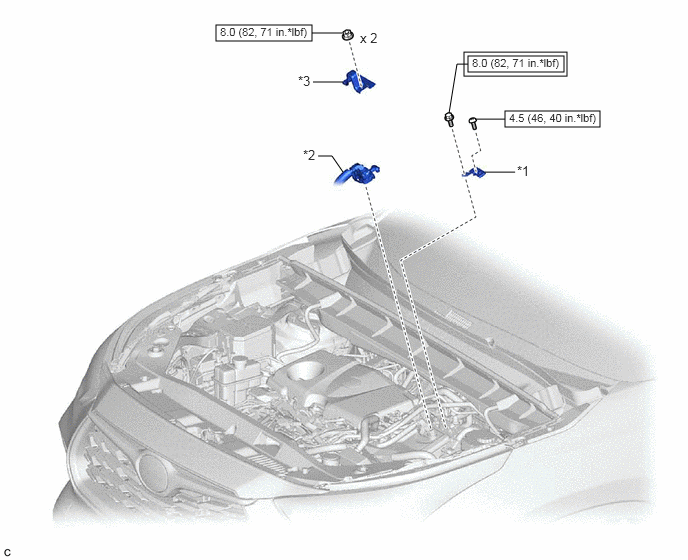

Fig 2: HV Battery Replacement Components With Torque Specifications (2 Of 7)
GTY905172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CONNECTOR COVER ASSEMBLY *2 ENGINE ROOM MAIN WIRE
*3 NO. 2 INVERTER PROTECTOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque

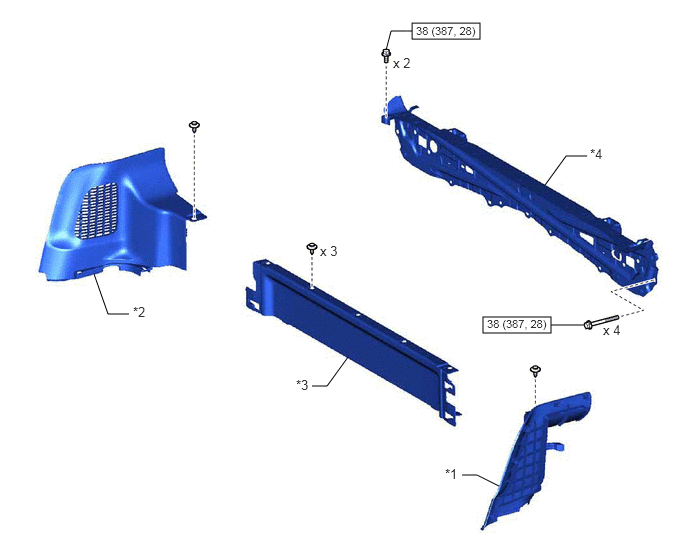

Fig 3: HV Battery Replacement Components With Torque Specifications (3 Of 7)
GTY878733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DECK SIDE TRIM COVER LH *2 FRONT DECK SIDE TRIM COVER RH
*3 CENTER PROTECTOR COVER *4 REAR SEAT SUB FLOOR PANEL ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque - -

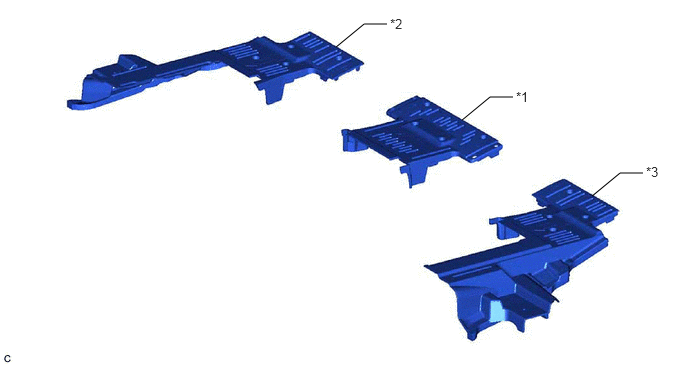

Fig 4: HV Battery Replacement Components (4 Of 7)
GTY943280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 FLOOR BOARD *2 NO. 2 FLOOR BOARD
*3 NO. 3 FLOOR BOARD - -

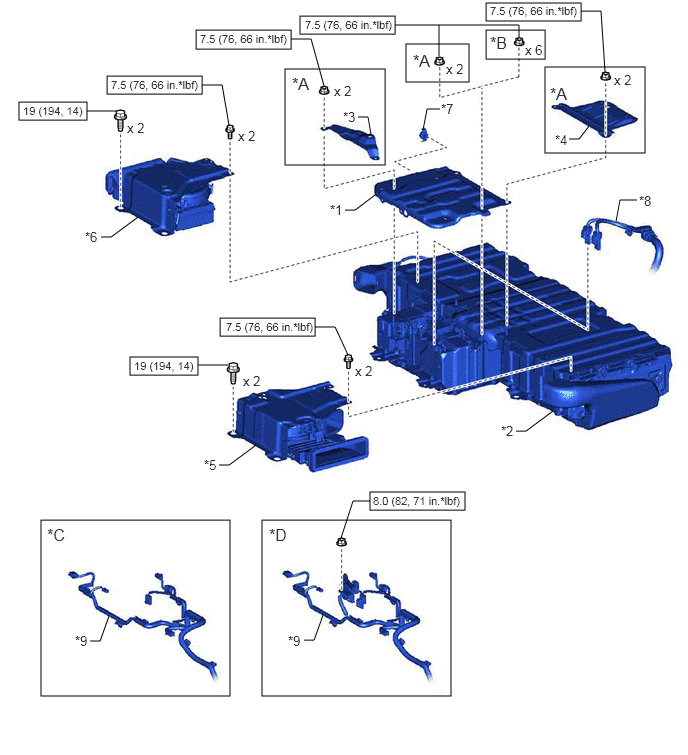

Fig 5: HV Battery Replacement Components With Torque Specifications (5 Of 7)
GTY846142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for Captain Seat Type *B for 60/40 Split Seat Type
*C w/o 1500w Voltage Inverter *D w/ 1500w Voltage Inverter
*1 NO. 10 HV BATTERY SHIELD PANEL *2 HV BATTERY
*3 NO. 3 CONSOLE BOX MOUNTING BRACKET *4 NO. 4 CONSOLE BOX MOUNTING BRACKET
*5 BLOWER SUB-ASSEMBLY LH *6 BLOWER SUB-ASSEMBLY RH
*7 BATTERY COVER LOCK STRIKER *8 HV FLOOR UNDER WIRE
*9 FLOOR WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque - -

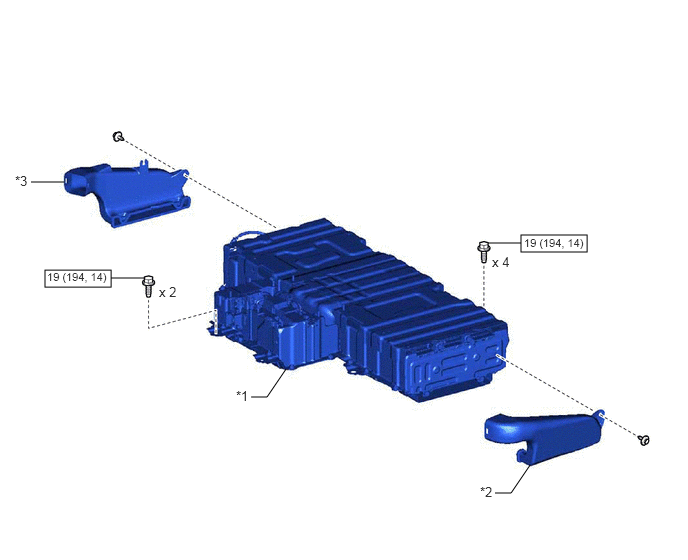

Fig 6: HV Battery Replacement Components With Torque Specifications (6 Of 7)
GTY841811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HV BATTERY *2 NO. 2 HV BATTERY INTAKE DUCT LH
*3 NO. 2 HV BATTERY INTAKE DUCT RH - -
N.m (kgf/cm, ft.lbf): Specified torque - -

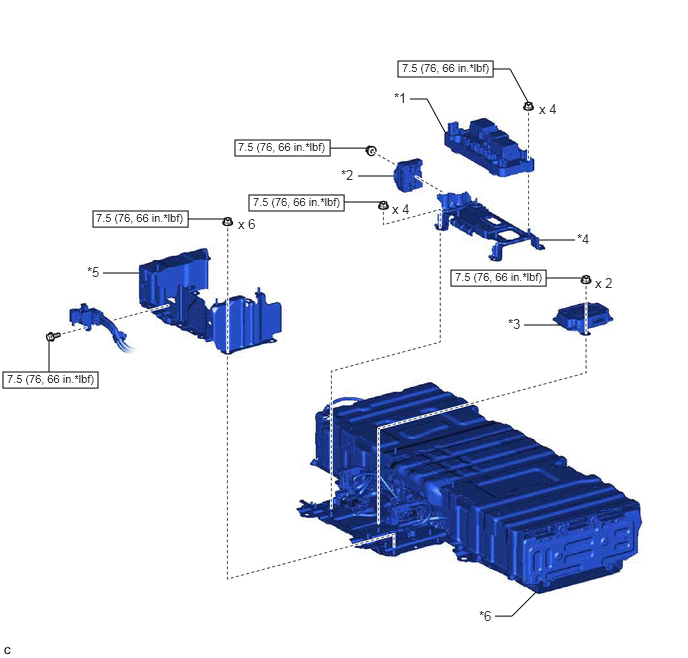

Fig 7: HV Battery Replacement Components With Torque Specifications (7 Of 7)
GTY858769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HV BATTERY JUNCTION BLOCK ASSEMBLY *2 HYBRID BATTERY TERMINAL BLOCK
*3 BATTERY VOLTAGE SENSOR *4 NO. 6 HV BATTERY CARRIER BRACKET
*5 NO. 1 HYBRID BATTERY SHIELD SUB-ASSEMBLY *6 HV BATTERY
N.m (kgf/cm, ft.lbf): Specified torque - -
