System Diagram [11/2023 - ]

WARNING: This page is about a different variant/trim than selected.

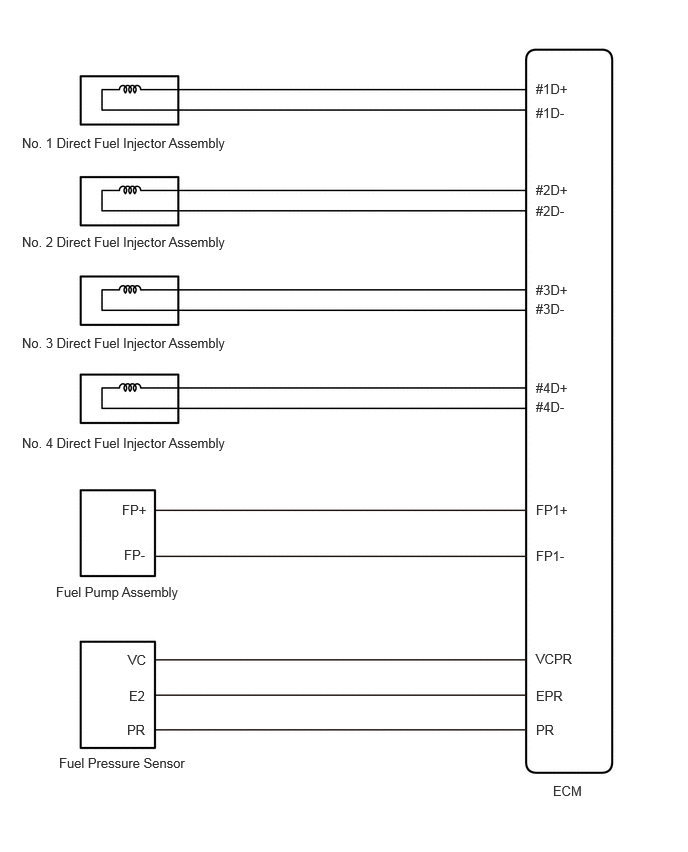

  1. HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
    GTY821895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

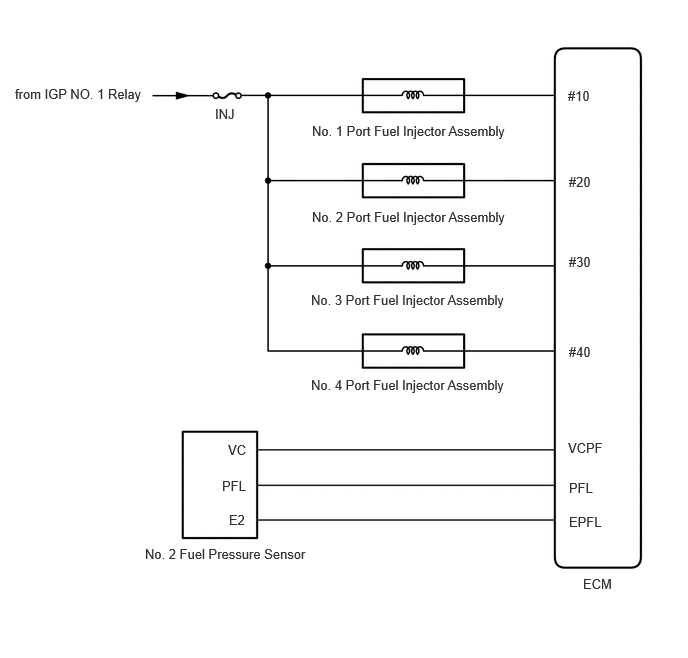

  2. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM
    GTY1180783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

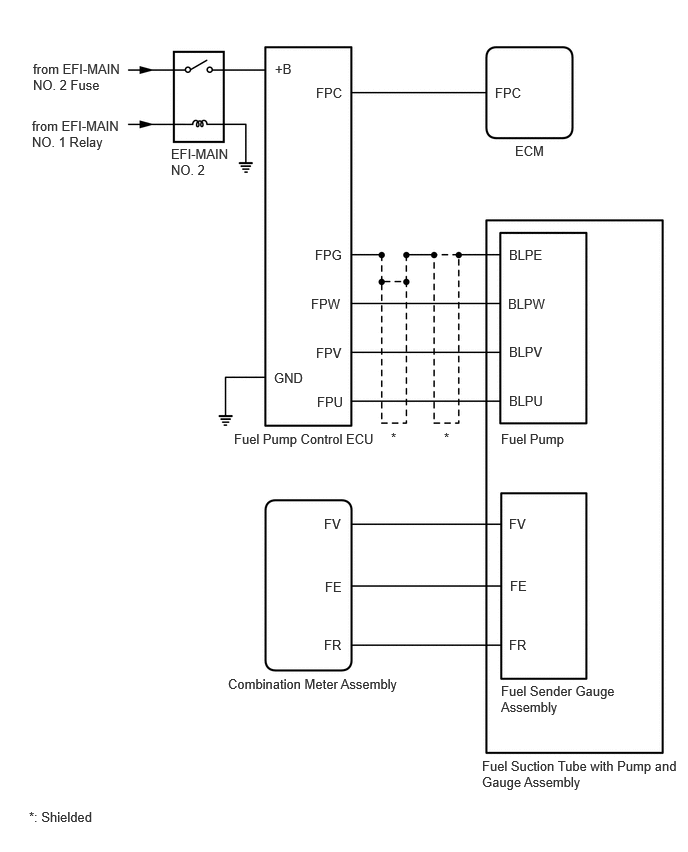

    GTY851959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
